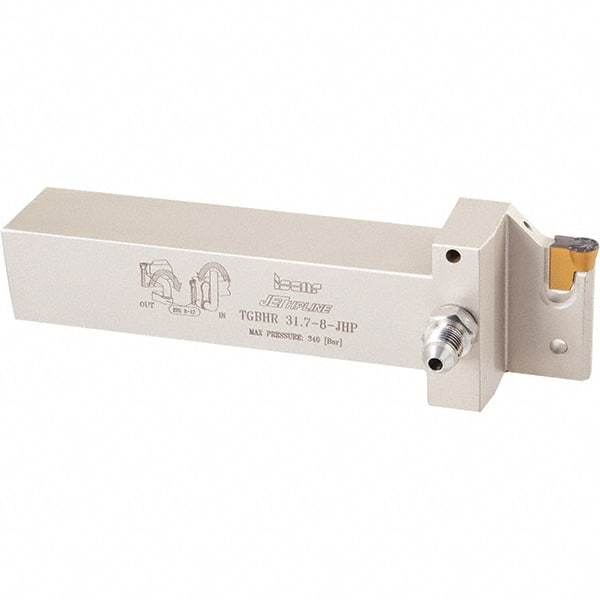

Iscar - External Thread, 0.98" Max Depth of Cut, 7" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1-1/4" Shank Height x 1-1/4" Shank Width, TAG Insert Style, TGBH Toolholder Style, Series Tang-Grip
Item #: 30706303
Brand: Iscar
Model #: 2801809
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9800 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 7.0000 |
| Series | Tang-Grip |
| Toolholder Style | TGBH |
| Insert Compatibility | TAG |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1100 |
| Head Length (Decimal Inch) | 1.6500 |
| Shank Length (Decimal Inch) | 5.3500 |
| Complete Insert Compatibility | TAG N8C; TAGB 808Y; TAGB 840Y; TAGBA 80-40YZ |
