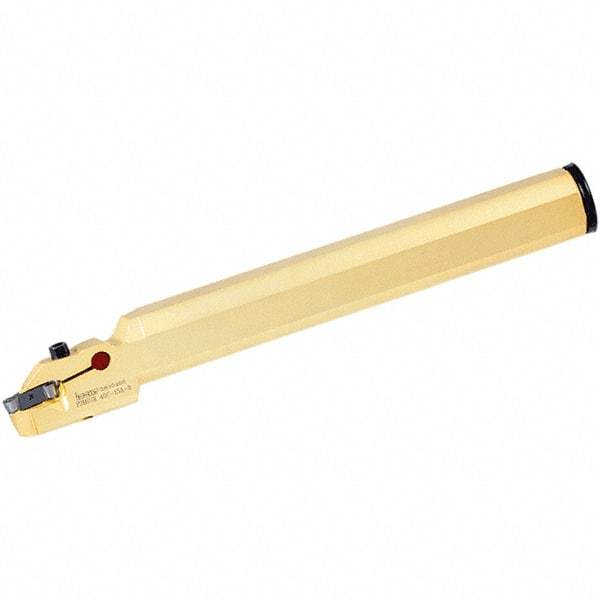

Iscar - FSPA, FSHIU Internal Right Hand Indexable Profiling Toolholder - 40mm Shank Width, 320mm Long, Through Coolant
Item #: 30706261
Brand: Iscar
Model #: 2801745
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Insert Compatibility | FSPA |
| Toolholder Style | FSHIU |
| Series | Fix-Grip |
| Through Coolant | Yes |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Width/Diameter (Decimal Inch) | 1.5748 |
| Overall Length (Decimal Inch) | 12.5984 |
| Overall Length (mm) | 320.00 |
| Insert Holding Method | Screw |
| Minimum Hole Diameter (mm) | 160.00 |
| Minimum Hole Diameter (Decimal Inch) | 6.2992 |
| Center to Cutting Edge (mm) | 21.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8268 |
| Head Length (mm) | 68.00 |
| Head Length (Decimal Inch) | 2.6772 |
| Maximum Hole Depth (Decimal Inch) | 0.0866 |
| Maximum Hole Depth (mm) | 2.20 |
| Complete Insert Compatibility | FSPA 6.00-3.00; FSPA 6.00-3.00YZ |
