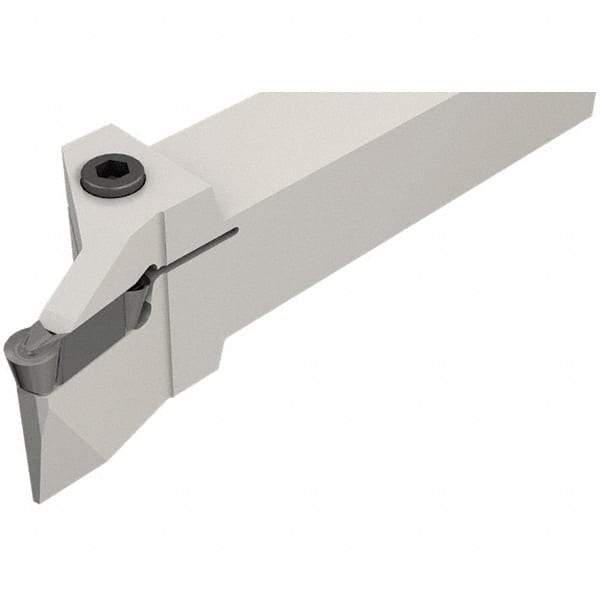

Iscar - GHDK, External, Right Hand, 19mm Max Depth of Cut, 8mm Max Groove Width, Indexable Grooving Tool Holder - GD.., GIDA 80-40.. Insert Compatibility, 32mm Shank Height, 32mm Shank Width, 170mm OAL
Item #: 30706238
Brand: Iscar
Model #: 2800708
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Groove Width (mm) | 8.00 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Toolholder Style | GHDK |
| Insert Compatibility | GD..; GIDA 80-40.. |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5748 |
| Head Height (Decimal Inch) | 0.4740 |
| Head Length (mm) | 44.00 |
| Head Length (Decimal Inch) | 1.7323 |
| Shank Length (mm) | 126.00 |
| Shank Length (Decimal Inch) | 4.9606 |
| Complete Insert Compatibility | GDMA 840; GDMY 840; GIDA 80-40; GIDA 80-40-D; GIDA 80-40CB-D; GIDA 80-40YZ; GIDA 80-40YZ-D |
