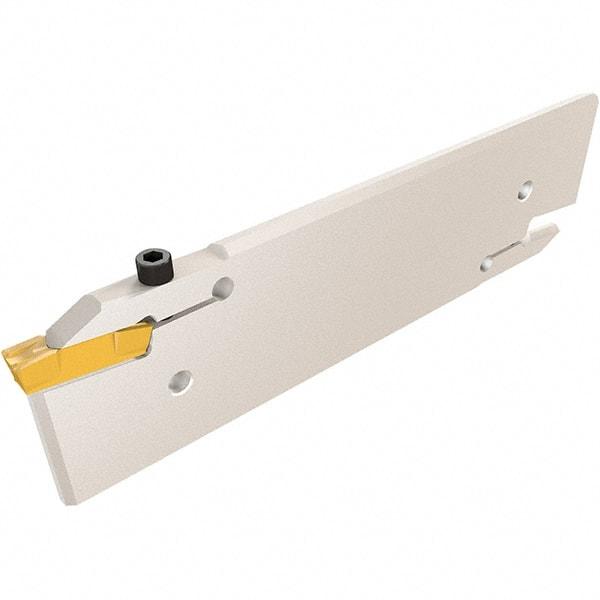

Iscar - GHA, External, Right Hand, 25mm Max Depth of Cut, Indexable Grooving Tool Holder - 32mm Shank Height, 32mm Shank Width, 144.5mm OAL
Item #: 30706188
Brand: Iscar
Model #: 2800560
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (mm) | 25.00 |
| Overall Length (mm) | 144.50 |
| Overall Length (Decimal Inch) | 5.6890 |
| Toolholder Style | GHA |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Threading |
| Insert Holding Method | Clamp |
| Head Height (Decimal Inch) | 1.5354 |
| Head Height (mm) | 39.00 |
| Head Length (mm) | 45.00 |
| Head Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 99.50 |
| Shank Length (Decimal Inch) | 3.9173 |
