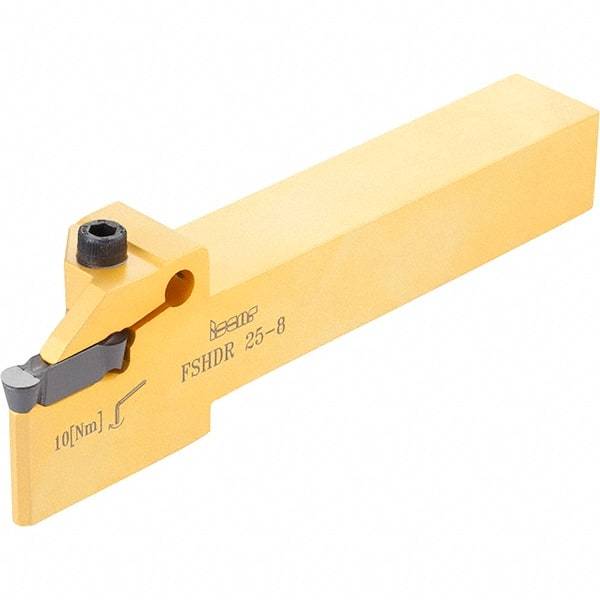

Iscar - FSHD, External, Right Hand, 0.826" Max Depth of Cut, 0.256" Max Groove Width, Indexable Grooving Tool Holder - FSPA 6.00-3.00 Insert Compatibility, 1" Shank Height, 1" Shank Width, 5.9" OAL
Item #: 30706170
Brand: Iscar
Model #: 2801750
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8260 |
| Maximum Groove Width (Decimal Inch) | 0.2560 |
| Overall Length (Decimal Inch) | 5.9000 |
| Toolholder Style | FSHD |
| Insert Compatibility | FSPA 6.00-3.00 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Fix-Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9100 |
| Head Length (Decimal Inch) | 2.0100 |
| Shank Length (Decimal Inch) | 3.8900 |
| Complete Insert Compatibility | FSPA 6.00-3.00; FSPA 6.00-3.00YZ |
