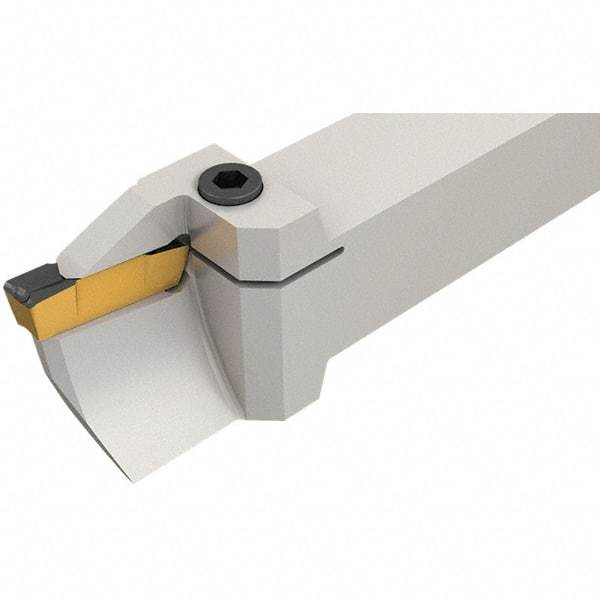

Iscar - GHFG, Internal or External, Right Hand, 24mm Max Depth of Cut, 8mm Max Groove Width, Indexable Grooving Tool Holder - GDM.., GIDA, GIF Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 30706154
Brand: Iscar
Model #: 2800221
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9449 |
| Maximum Depth of Cut (mm) | 24.00 |
| Maximum Groove Width (mm) | 8.00 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | GHFG |
| Insert Compatibility | GDM..; GIDA; GIF |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Turning |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 80.00 |
| Minimum Hole Diameter (Decimal Inch) | 3.1496 |
| Back of Bar to Cutting Edge (mm) | 21.30 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8386 |
| Maximum Groove Outside Diameter (mm) | 115.00 |
| Minimum Axial Groove Inside Diameter(mm) | 80.00 |
| Head Height (Decimal Inch) | 1.2205 |
| Head Height (mm) | 31.00 |
| Head Length (mm) | 43.50 |
| Head Length (Decimal Inch) | 1.7126 |
| Shank Length (mm) | 106.50 |
| Shank Length (Decimal Inch) | 4.1929 |
| Complete Insert Compatibility | GDMF 808; GDMU 808; GDMY 808; GIDA 80-40; GIDA 80-40-D; GIDA 80-40CB-D; GIDA 80-40YZ; GIDA 80-40YZ-D; GIF 8.00E-1.20; GIF 8.00E-0.80; GIF 8.00E-0.40; GIPA/GIDA 8 |
