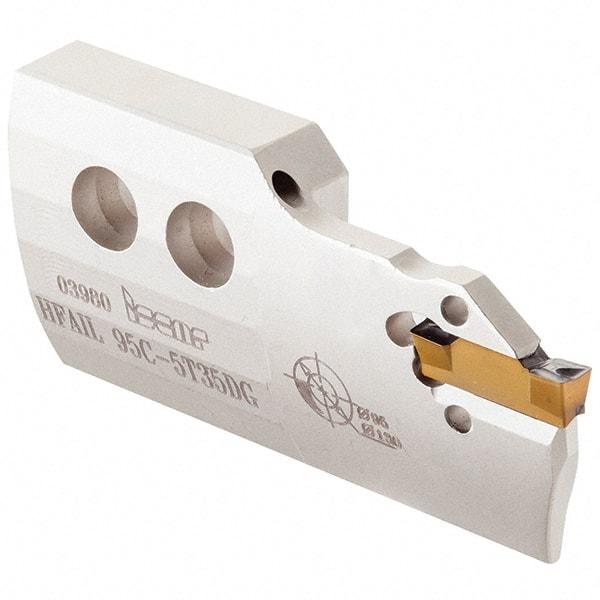

Iscar - 6" Groove Width, 38mm Max Depth of Cut, Left Hand Cut, HFAI Indexable Grooving Blade - HFPR/L, HFPR/L (Full Radius), HGPL Insert Style, Series Heliface
Item #: 30706139
Brand: Iscar
Model #: 2500736
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 38.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4961 |
| Blade Style | HFAI |
| Series | Heliface |
| Maximum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 76.50 |
| Overall Length (Decimal Inch) | 3.0118 |
| Insert Style | HFPR/L; HFPR/L (Full Radius); HGPL |
| Complete Insert Compatibility | HFPR 5004; HFPR 5025; HGPL 5005Y; HGPL 5025Y |
