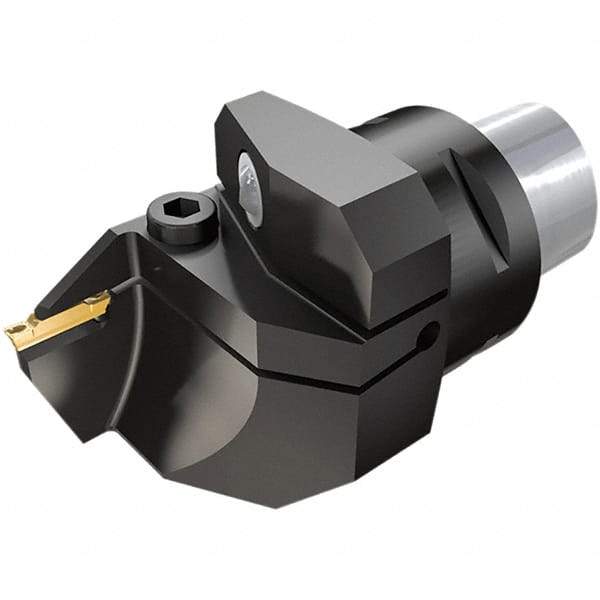

Iscar - DG.., GRIP Insert, 70mm Head Length, 5mm Min Groove Width, Modular Grooving Cutting Unit Head - Right Hand Cut, System Size C6, Through Coolant, Series CAMFIX, Heli-Grip
Item #: 30705990
Brand: Iscar
Model #: 2500682
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | CAMFIX; Heli-Grip |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Insert Style | DG..; GRIP |
| Head Length/Projection (mm) | 70.00 |
| Head Length/Projection (Decimal Inch) | 2.7560 |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 30.99 |
| Center to Cutting Edge (Decimal Inch) | 1.2200 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Complete Insert Compatibility | DGL 5003C-4D; DGN 5003C; DGN 5003J; DGN 5003JT; DGR 5003C-4D; GRIP 5005Y; GRIP 5008Y; GRIP 5025Y |
| Minimum Groove Width (mm) | 5.00 |
| Minimum Groove Width (Decimal Inch) | 0.1970 |
