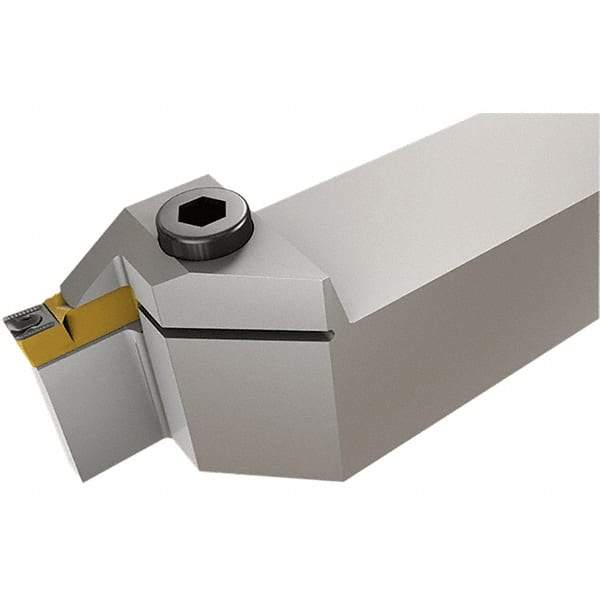

Iscar - HELI, External, Right Hand, 5 to 5mm Groove Width, Indexable Grooving Tool Holder - DG.., GRIP 50.. Insert Compatibility, 32mm Shank Height, 32mm Shank Width, 150mm OAL
Item #: 30705974
Brand: Iscar
Model #: 2500620
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | HELI |
| Insert Compatibility | DG..; GRIP 50.. |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Series | Heli-Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 29.90 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1772 |
| Head Length (mm) | 43.00 |
| Head Length (Decimal Inch) | 1.6929 |
| Shank Length (mm) | 107.00 |
| Shank Length (Decimal Inch) | 4.2126 |
| Complete Insert Compatibility | DGL 5003C-4D; DGN 5003C; DGN 5003J; DGN 5003JT; DGR 5003C-4D; GRIP 5005Y; GRIP 5008Y; GRIP 5025Y |
