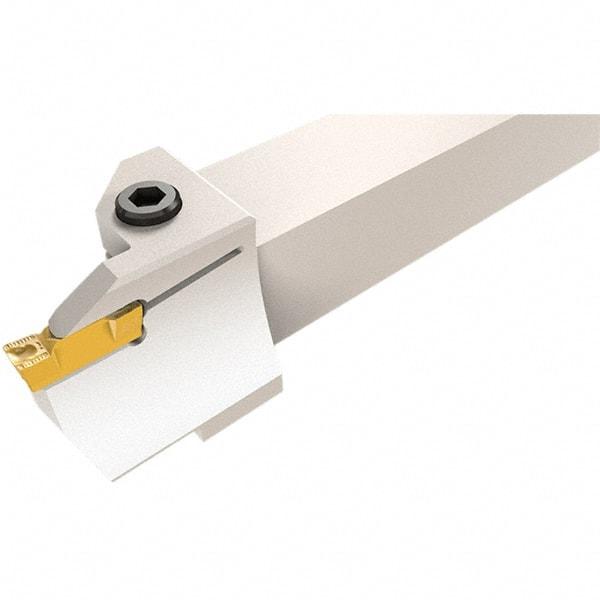

Iscar - HFH, External, Right Hand, 32mm Max Depth of Cut, 6mm Max Groove Width, Indexable Grooving Tool Holder - GRIP, HFPR Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 30705917
Brand: Iscar
Model #: 2500288
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | HFH |
| Insert Compatibility | GRIP; HFPR |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 26.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0394 |
| Maximum Groove Outside Diameter (mm) | 180.00 |
| Minimum Axial Groove Inside Diameter(mm) | 100.00 |
| Head Height (Decimal Inch) | 1.4567 |
| Head Height (mm) | 37.00 |
| Head Length (mm) | 51.00 |
| Head Length (Decimal Inch) | 2.0079 |
| Shank Length (mm) | 99.00 |
| Shank Length (Decimal Inch) | 3.8976 |
| Complete Insert Compatibility | GRIP 6005Y; GRIP 6008Y; GRIP 6030Y; GRIP 635-080Y; GRIP 635-318Y; HFPR 6004; HFPR 6030 |
| Minimum BoreDiameter (mm) | 100.00 |
