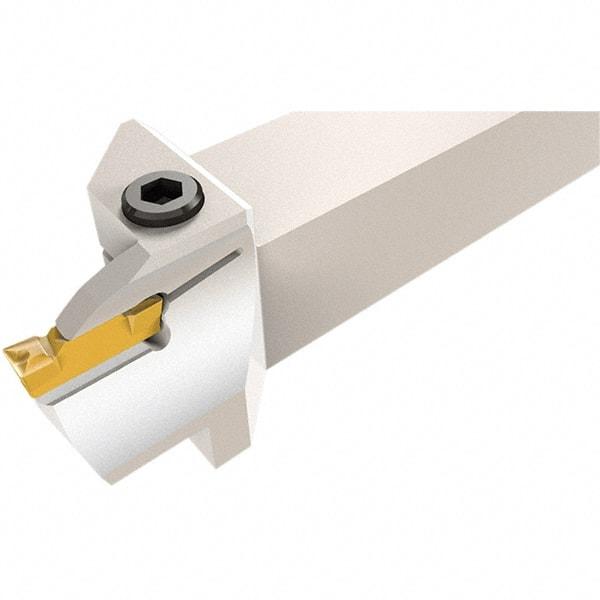

Iscar - HFH, External, Right Hand, 28mm Max Depth of Cut, 5mm Max Groove Width, Indexable Grooving Tool Holder - DGN, GRIP, HFPR Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 140mm OAL
Item #: 30705834
Brand: Iscar
Model #: 2500045
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.1024 |
| Maximum Depth of Cut (mm) | 28.00 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Toolholder Style | HFH |
| Insert Compatibility | DGN; GRIP; HFPR |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 21.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8268 |
| Maximum Groove Outside Diameter (mm) | 95.00 |
| Minimum Axial Groove Inside Diameter(mm) | 70.00 |
| Head Height (Decimal Inch) | 1.3780 |
| Head Height (mm) | 35.00 |
| Head Length (mm) | 47.00 |
| Head Length (Decimal Inch) | 1.8504 |
| Shank Length (mm) | 93.00 |
| Shank Length (Decimal Inch) | 3.6614 |
| Complete Insert Compatibility | DGN 4803C; DGN 5003C; GRIP 5005Y; GRIP 5008Y; GRIP 5025Y; HFPR 5004; HFPR 5025 |
| Minimum BoreDiameter (mm) | 70.00 |
