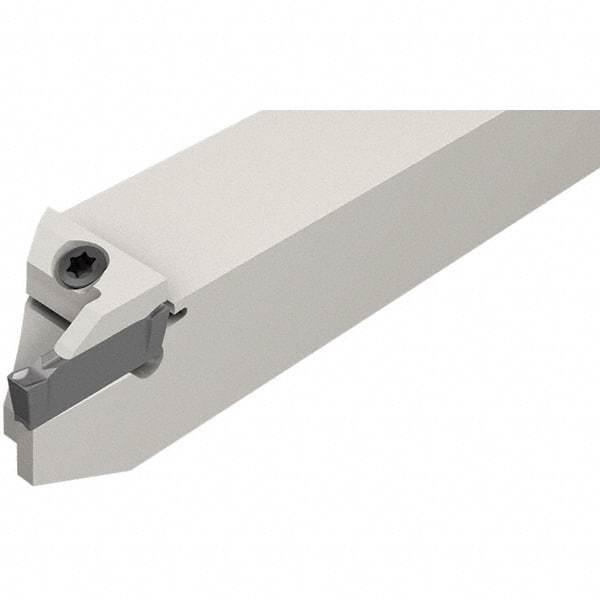

Iscar - External Thread, 1.9mm Min Groove Width, 85mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 12mm Shank Height x 12mm Shank Width, DG.. Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 30705610
Brand: Iscar
Model #: 2391752
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Minimum Groove Width (Decimal Inch) | 0.0748 |
| Minimum Groove Width (mm) | 1.90 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Maximum Groove Width (mm) | 2.50 |
| Overall Length (Decimal Inch) | 3.3465 |
| Overall Length (mm) | 85.00 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG.. |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4409 |
| Head Height (mm) | 15.70 |
| Head Height (Decimal Inch) | 0.6181 |
| Head Length (mm) | 19.00 |
| Head Length (Decimal Inch) | 0.7480 |
| Shank Length (Decimal Inch) | 2.5984 |
| Shank Length (mm) | 66.00 |
| Complete Insert Compatibility | DGL 5003C-4D; DGL 5003J-4D; DGN 4803C; DGN 4803J; DGN 5003C; DGN 5003J; DGN 5003JT; DGN 5003UT; DGR 4800CS-4D; DGR 4800CS-8D; DGR 4800JS-4D; DGR 4800JS-8D; DGR 4803C-4D; DGR 4803C-8D; DGR 4803J-4D; DGR 4803J-8D |
