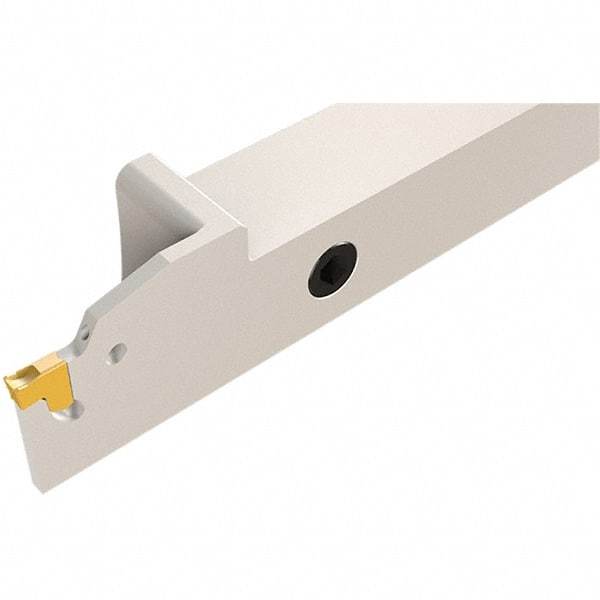

Iscar - External Thread, 1.8mm Min Groove Width, 120mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 20mm Shank Width, TAG Insert Style, TGT Toolholder Style, Series Tang-Grip
Item #: 30705404
Brand: Iscar
Model #: 2302397
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.0709 |
| Minimum Groove Width (mm) | 1.80 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Maximum Groove Width (mm) | 2.50 |
| Overall Length (Decimal Inch) | 4.7244 |
| Overall Length (mm) | 120.00 |
| Series | Tang-Grip |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Head Height (mm) | 24.60 |
| Head Height (Decimal Inch) | 0.9685 |
| Head Length (mm) | 21.00 |
| Head Length (Decimal Inch) | 0.8268 |
| Shank Length (Decimal Inch) | 3.8976 |
| Shank Length (mm) | 99.00 |
| Complete Insert Compatibility | TAG L2C-6D; TAG L2J-15D; TAG L2J-6D; TAG L2JS-6D; TAG N-UT; TAG N2.4C; TAG N2C; TAG N2J; TAG N2JS; TAG N2JT; TAG N2UT; TAG R2.4C-8D; TAG R2C-6D; TAG R2J-6D; TAG R2JS-6D |
