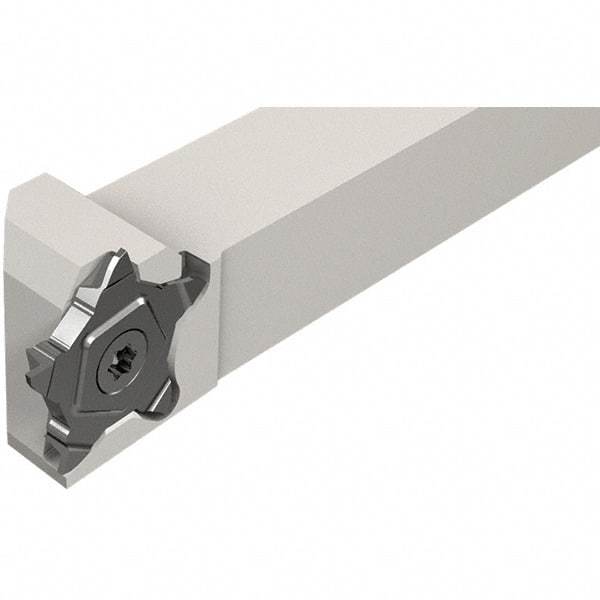

Iscar - External Thread, 0.5mm Min Groove Width, 120mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 20mm Shank Width, PENTA 24N Insert Style, PCH Toolholder Style, Series PentaCut
Item #: 30705313
Brand: Iscar
Model #: 2302736
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.0197 |
| Minimum Groove Width (mm) | 0.50 |
| Maximum Groove Width (Decimal Inch) | 0.1890 |
| Maximum Groove Width (mm) | 4.80 |
| Overall Length (Decimal Inch) | 4.7244 |
| Overall Length (mm) | 120.00 |
| Series | PentaCut |
| Toolholder Style | PCH |
| Insert Compatibility | PENTA 24N |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7283 |
| Head Height (mm) | 25.00 |
| Head Height (Decimal Inch) | 0.9843 |
| Head Length (mm) | 19.50 |
| Head Length (Decimal Inch) | 0.7677 |
| Shank Length (Decimal Inch) | 3.9567 |
| Shank Length (mm) | 100.50 |
| Complete Insert Compatibility | PENTA 24N080NF010LS; PENTA 24N100NF010LS; PENTA 24N119NF010LS; PENTA 24N157NF020LS; PENTA 24N157NF079LS; PENTA 24N200NF020LS; PENTA 24N239NF020LS; PENTA 24N239NF119LS; PENTA 24N300NF020LS; PENTA 24N318NF020LS; PENTA 24N318NF159LS; PENTA 24N400NF020LS |
