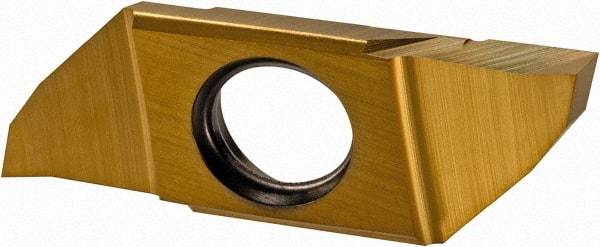

Iscar - SCIR22250 P IC1008 Grade, 0.0984" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.002" Cnr Rad, TiAlN/TiN Coated, Single End
Item #: 30696728
Brand: Iscar
Model #: 6405413
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | SCIR |
| Insert Size | 22250 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Material Grade | C1/C2/C3/C5/C6 |
| Manufacturer's Grade | IC1008 |
| Coating | TiAlN/TiN |
| Series | Swisscut |
| Chipbreaker | P |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Full Radius | No |
| Multi-Use Application | Grooving; Turning |
| Coating Process | PVD |
| Overall Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8661 |
| Cutting Height (mm) | 7.00 |
| Cutting Height (Decimal Inch) | 0.2756 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (mm) | 0.05 |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
| Manufacturers Catalog Number | SCIR 22-250NP05 |
