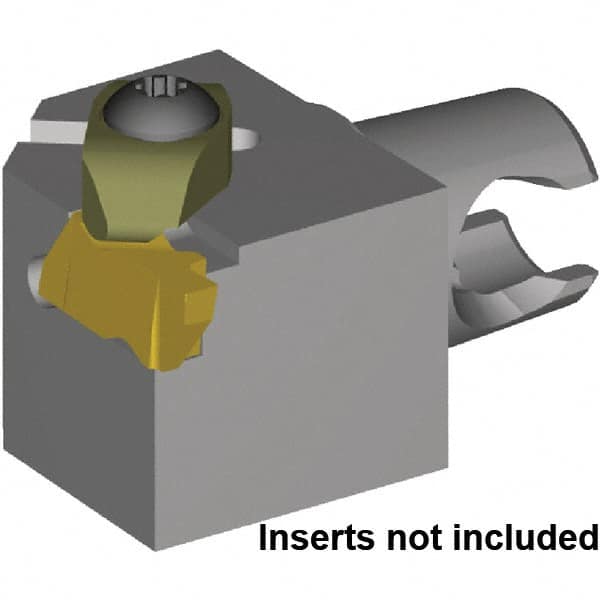

Kennametal - NG3L Insert, 25mm Head Length, Modular Grooving Cutting Unit Head - Right Hand Cut, System Size KM20, Series NE
Item #: 30417802
Brand: Kennametal
Model #: 3483034
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM20 |
| Series Name | NE |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Insert Style | NG3L |
| Head Length/Projection (mm) | 25.00 |
| Head Length/Projection (Decimal Inch) | 0.9843 |
| Through Coolant | NonThrough Coolant |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Minimum Depth of Cut (mm) | 5.33 |
| Minimum Depth of Cut (Decimal Inch) | 0.2098 |
| Maximum Depth of Cut (mm) | 5.33 |
| Maximum Depth of Cut (Decimal Inch) | 0.2098 |
