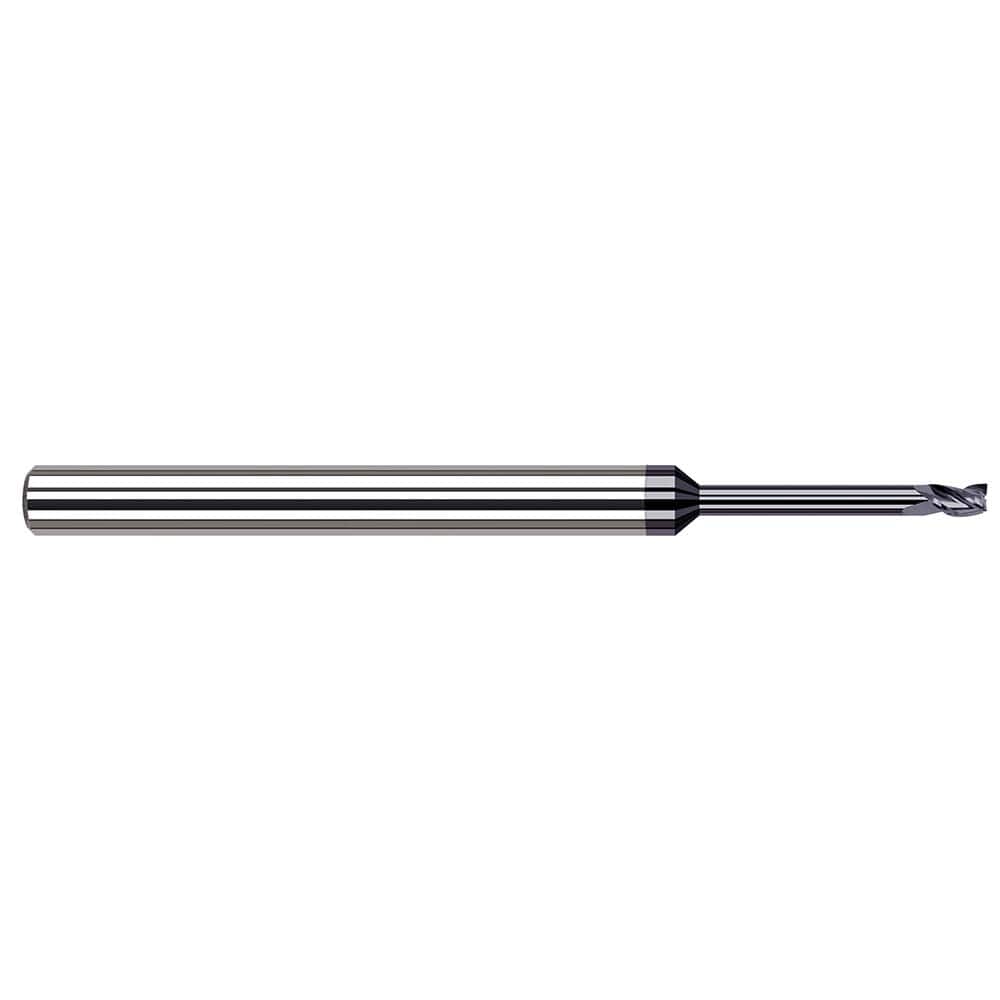

Harvey Tool - Square End Mills; Mill Diameter (Inch): 3/16 ; Mill Diameter (Decimal Inch): 0.1875 ; Length of Cut (Decimal Inch): 0.2850 ; Material: Solid Carbide ; Finish/Coating: AlTiN Nano ; Shank Diameter (Inch): 3/16
Item #: 30375448
Brand: Harvey Tool
Model #: 978312-C6
Product Specifications
Square End Mills; Mill Diameter (Inch): 3/16 ; Mill Diameter (Decimal Inch): 0.1875 ; Length of Cut (Decimal Inch): 0.2850 ; Material: Solid Carbide ; Finish/Coating: AlTiN Nano ; Shank Diameter (Inch): 3/16
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Length of Cut (Decimal Inch) | 0.2850 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN Nano |
| Shank Diameter (Inch) | 3/16 |
| Single or Double End | Single |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.00000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 34 |
| Variable Helix | Yes |
| Reach Length (Inch) | 1-1/2 |
| Reach Length (Decimal Inch) | 1.5000 |
| Series/List | Variable Helix End Mills for High Temp Alloys - Square - Long Reach, Stub Flute |
