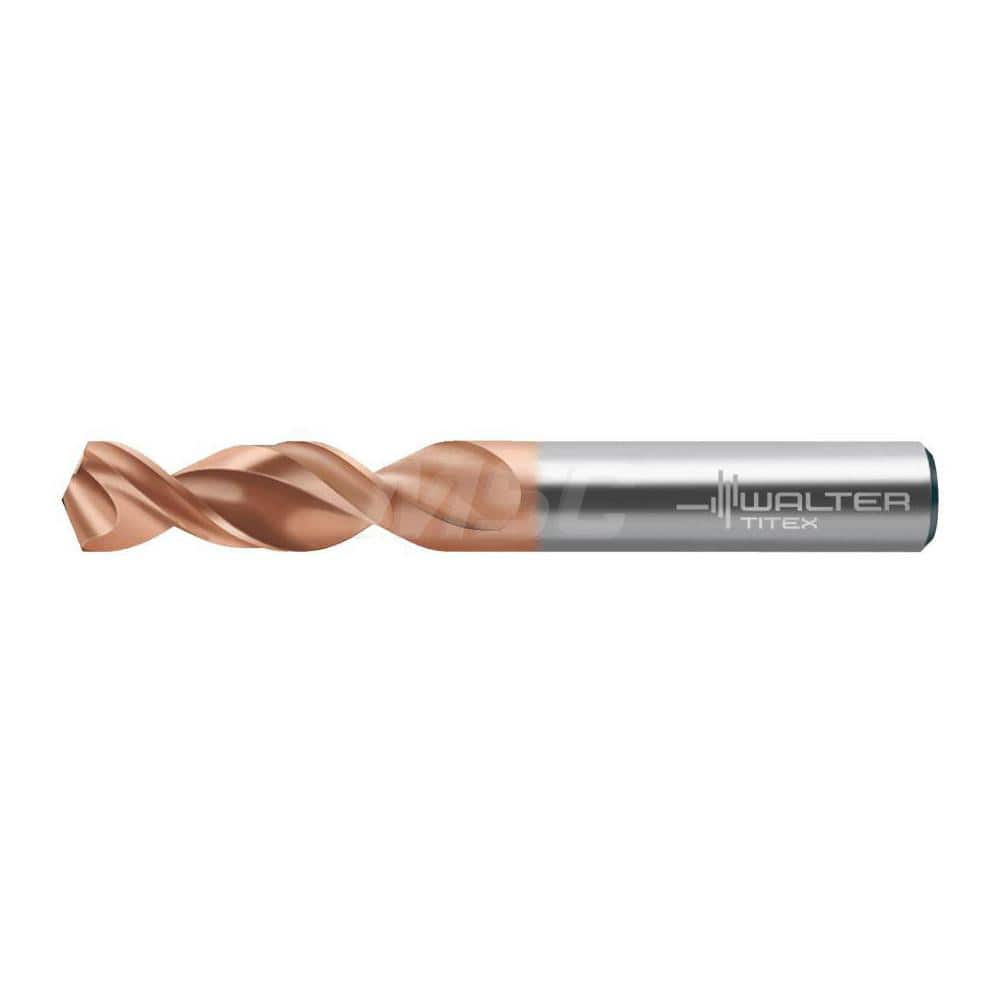

Screw Machine Length Drill Bit: 0.29″ Dia, 130 °, Cobalt Coated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series A1149XPL
Item #: 30214159
Brand: Walter-Titex
Model #: 5337221
Product Specifications
| Drill Bit Size (Letter) | L |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 130 |
| Flute Type | Parabolic |
| Point Type | Conical+U |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2902 |
| Drill Bit Size (Decimal Inch) | 0.2900 |
| Overall Length (mm) | 74.00 |
| Overall Length (Decimal Inch) | 2.9134 |
| Shank Diameter (mm) | 7.37 |
| Series | A1149XPL |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.8661 |
| Maximum Drilling Depth (mm) | 22.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Drill Point Length (mm) | 1.72 |
| Drill Point Length (Decimal Inch) | 0.0676 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | h8 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 1.3386 |
| Flute Length (mm) | 34.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
| Material Grade | M35 |
 | |
| MSC Part # | 30214159 |
| Mfr Part # | 5337221 |
| Country of OriginCountry of Origin is subject to change | France |
