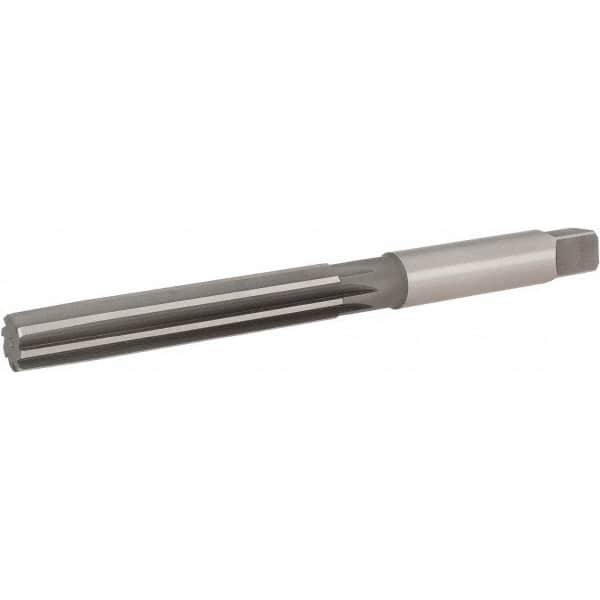

Hertel - 23/32" Diam, Straight Shank, 4-1/16" Flute, Hand Reamer - Straight Flute, 8-1/8" OAL, Right Hand Cut, 8 Flutes, High Speed Steel
Item #: 30162457
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Standard reamers are constructed with a fixed diameter. They are used only for holes that have a diameter equal to the reamer.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (Decimal Inch) | 0.7188 |
| Reamer Diameter (Inch) | 23/32 |
| Flute Length (Inch) | 4.0600 |
| Shank Type | Straight |
| Variable Diameter Reamer Type | None |
| Flute Type | Straight |
| Flute Length (Inch) | 4-1/16 |
| Overall Length (Inch) | 8-1/8 |
| Number of Flutes | 8 |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| PSC Code | 5133 |
