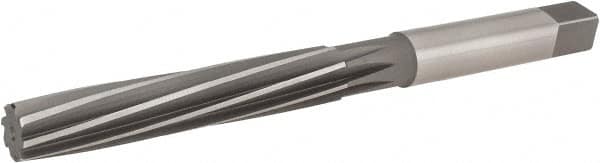

Hertel - 21/32" Diam, Straight Shank, 3.69" Flute, Hand Reamer - Spiral Flute, 7.38" OAL, Left Hand Spiral, Right Hand Cut, 8 Flutes, High Speed Steel
Item #: 30162119
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Standard reamers are constructed with a fixed diameter. They are used only for holes that have a diameter equal to the reamer.
Spiral flute reamers are used in blind and through-hole operations. They are able to bridge interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (Decimal Inch) | 0.6562 |
| Reamer Diameter (Inch) | 0.6562 |
| Flute Length (Inch) | 3.6900 |
| Shank Type | Straight |
| Variable Diameter Reamer Type | None |
| Flute Type | Spiral |
| Flute Length (Inch) | 3.6900 |
| Overall Length (Inch) | 7.3800 |
| Number of Flutes | 8 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| PSC Code | 5133 |
