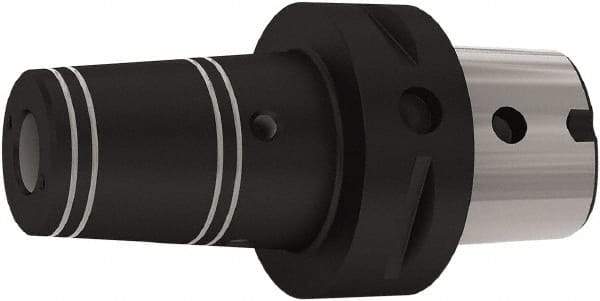

Seco - 1/2" Shank Diam, 1/2" Hole Diam, C6 Modular Connection Shrink Fit Tool Holder & Adapter - 79.25mm Projection, 24mm Nose Diam, Through Coolant
Item #: 30140065
Brand: Seco
Model #: 92468
Exact Tooling IR#: 04
Features and Benefits
Modular connections are used in compatible modular tool holder systems and allow for tool changes without removing the tool shank from the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Modular Connection Size | C6 |
| Shank Diameter (mm) | 12.70 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Hole Diameter (mm) | 12.70 |
| Hole Diameter (Inch) | 1/2 |
| Projection (mm) | 79.25 |
| Projection (Decimal Inch) | 3.1200 |
| Nose Diameter (mm) | 24.00 |
| Nose Diameter (Decimal Inch) | 0.9449 |
| Through Coolant | Through Coolant |
