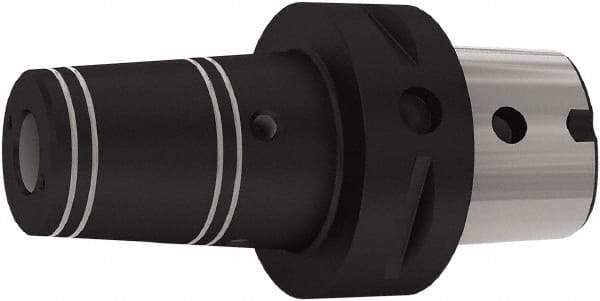

Seco - 1-1/4" Shank Diam, 1-1/4" Hole Diam, C8 Modular Connection Shrink Fit Tool Holder & Adapter - 101.6mm Projection, 44mm Nose Diam, Through Coolant
Item #: 30140008
Brand: Seco
Model #: 92474
Exact Tooling IR#: 04
Features and Benefits
Modular connections are used in compatible modular tool holder systems and allow for tool changes without removing the tool shank from the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Modular Connection Size | C8 |
| Shank Diameter (mm) | 31.75 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Hole Diameter (mm) | 31.75 |
| Hole Diameter (Inch) | 1-1/4 |
| Projection (mm) | 101.60 |
| Projection (Decimal Inch) | 4.0000 |
| Nose Diameter (mm) | 44.00 |
| Nose Diameter (Decimal Inch) | 1.7323 |
| Through Coolant | Through Coolant |
