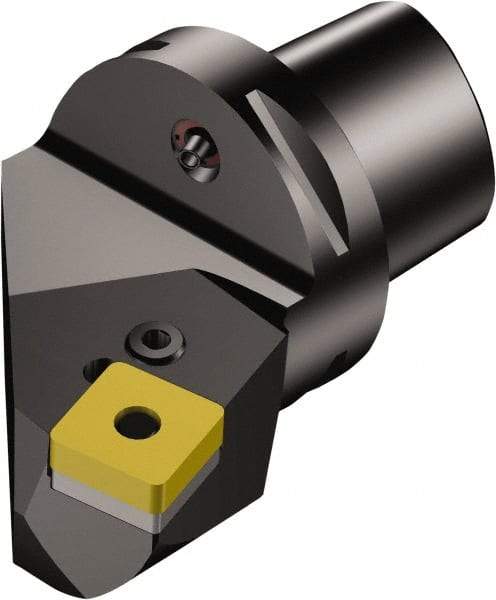

Sandvik Coromant - Left Hand Cut, Size C8, SNMG 19 06 12 & SNMG 643 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 55mm Ctr to Cutting Edge, 84.6mm Head Length, Through Coolant, Series T-Max P
Item #: 30137087
Brand: Sandvik Coromant
Model #: 5730072
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C8 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 84.60 |
| Head Length/Projection (Decimal Inch) | 3.3307 |
| Insert Style | SNMG 19 06 12; SNMG 643 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 55.00 |
| Center to Cutting Edge (Decimal Inch) | 2.1654 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 80.00 |
| Maximum Hole Depth (Decimal Inch) | 3.1496 |
| Neck Diameter (mm) | 80.00 |
| Neck Diameter (Decimal Inch) | 3.14961 |
| Complete Insert Compatibility | SNMG 643; SNMG 19 06 12 |
| Head Connection Size | C8 |
