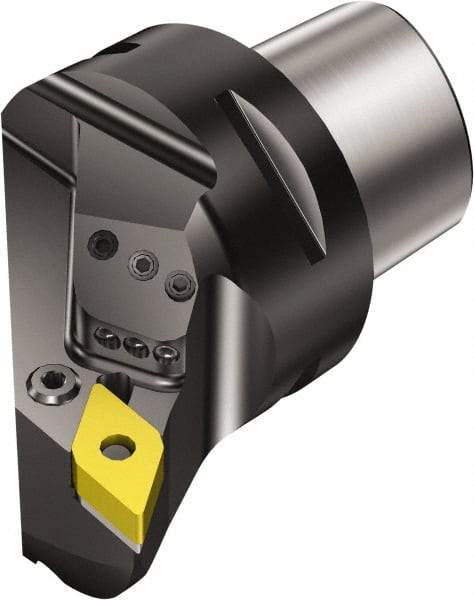

Sandvik Coromant - Left Hand Cut, Size C8, DNMG 15 06 08 & DNMG 442 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 55mm Ctr to Cutting Edge, 80mm Head Length, Through Coolant, Series T-Max P
Item #: 30137079
Brand: Sandvik Coromant
Model #: 6066651
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C8 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 80.00 |
| Insert Style | DNMG 15 06 08; DNMG 442 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 55.00 |
| Center to Cutting Edge (Decimal Inch) | 2.1654 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 80.00 |
| Maximum Hole Depth (Decimal Inch) | 3.1496 |
| Minimum Hole Diameter (mm) | 100.00 |
| Minimum Hole Diameter (Decimal Inch) | 3.9370 |
| Neck Diameter (mm) | 80.00 |
| Neck Diameter (Decimal Inch) | 3.14961 |
| Complete Insert Compatibility | DNMG 442; DNMG 15 06 08 |
| Head Connection Size | C8 |
