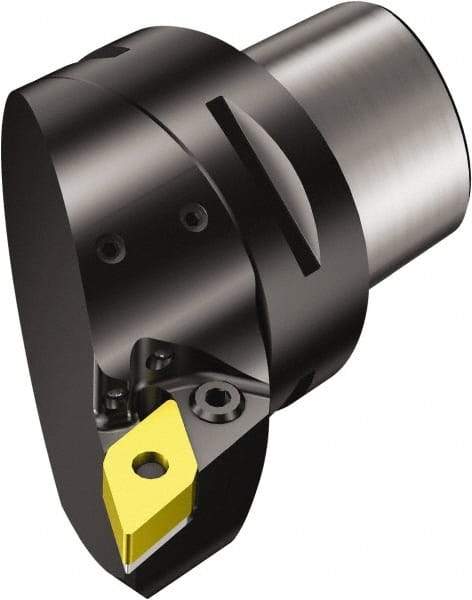

Sandvik Coromant - Left Hand, C8 DNMG 442 Modular Turning and Profiling Cutting Unit Head - Lever Holding Method, 5.1181 Inch Hole Diameter, Through Coolant
Item #: 30137020
Brand: Sandvik Coromant
Model #: 5853309
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C8 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 80.00 |
| Head Length/Projection (Decimal Inch) | 3.1496 |
| Insert Style | DNMG 442 |
| Center to Cutting Edge (mm) | 55.00 |
| Center to Cutting Edge (Decimal Inch) | 2.1654 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 130.00 |
| Minimum Hole Diameter (Decimal Inch) | 5.1181 |
| Complete Insert Compatibility | DNMG 15 06 08 |
