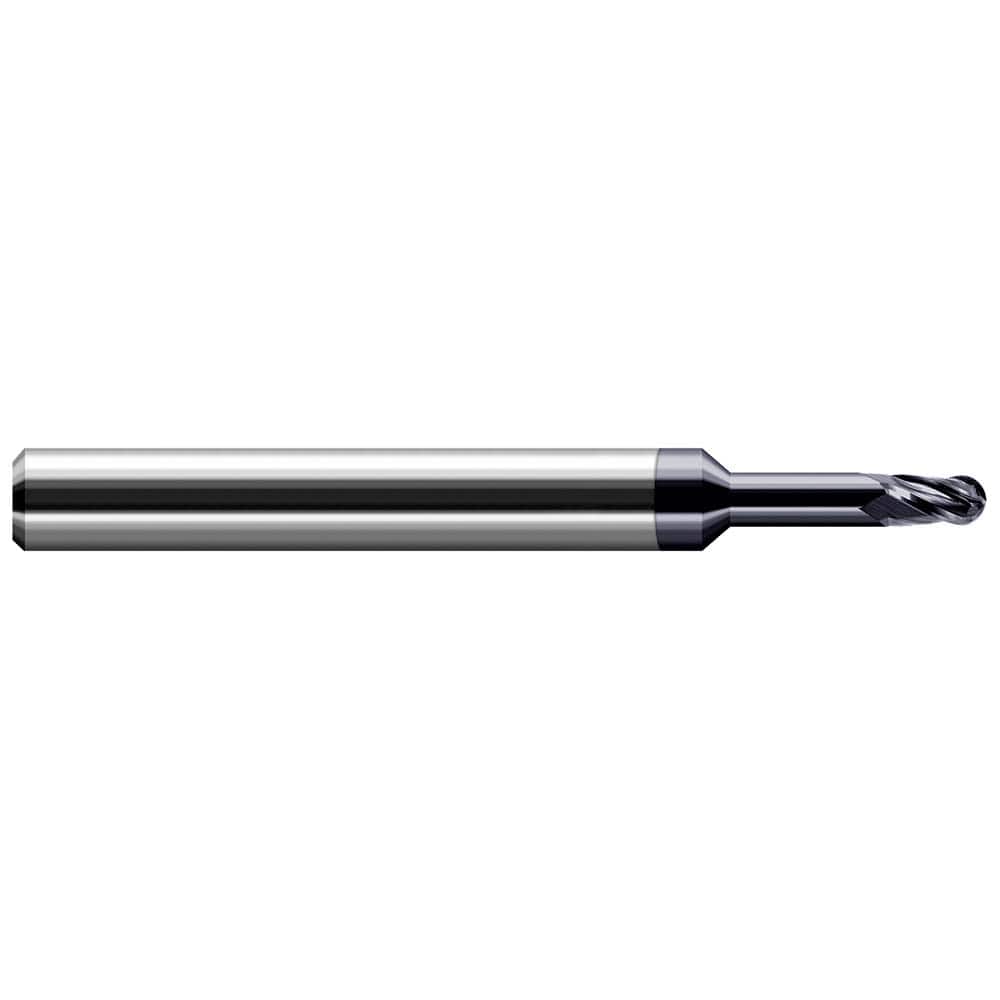

Harvey Tool - Ball End Mills; Mill Diameter (Decimal Inch): 0.0400 ; Number of Flutes: 4 ; Length of Cut (Decimal Inch): 0.0600 ; Material: Solid Carbide ; Overall Length (Inch): 2-1/2 ; Overall Length (Decimal Inch): 2.50000
Item #: 30035372
Brand: Harvey Tool
Model #: 63640-C6
Product Specifications
Ball End Mills; Mill Diameter (Decimal Inch): 0.0400 ; Number of Flutes: 4 ; Length of Cut (Decimal Inch): 0.0600 ; Material: Solid Carbide ; Overall Length (Inch): 2-1/2 ; Overall Length (Decimal Inch): 2.50000
| Mill Diameter (Decimal Inch) | 0.0400 |
| Number of Flutes | 4 |
| Length of Cut (Decimal Inch) | 0.0600 |
| Material | Solid Carbide |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Finish/Coating | AlTiN Nano |
| Single or Double End | Single |
| Helix Angle | 34 |
| Variable Helix | Yes |
| Reach Length (Inch) | 13/64 |
| Reach Length (Decimal Inch) | 0.2030 |
| Series/List | Variable Helix End Mills for High Temp Alloys - Ball - Long Reach, Stub Flute |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
