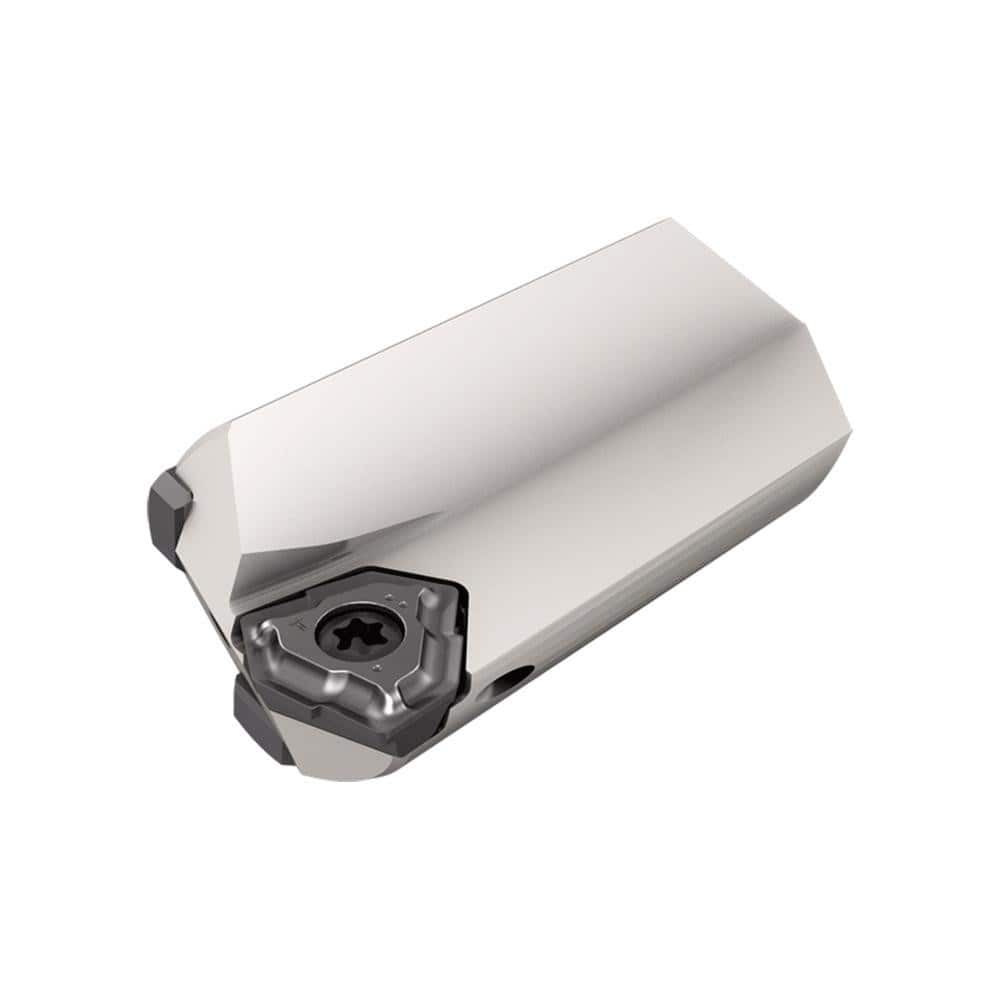

Indexable Insert Drills; Drill Style: GDH; Maximum Drill Diameter (mm): 16.50; Maximum Drill Depth (mm): 51.30; Shank Type: Flatted; Shank Diameter (Inch): 16; Shank Diameter (mm): 16.00; Number of Drill Inserts: 3; Cutting Direction: Right Hand; Maximum
Item #: 29635430
Brand: Iscar
Model #: 4851522
Product Specifications
| Drill Style | GDH |
| Maximum Drill Diameter (mm) | 16.50 |
| Maximum Drill Depth (mm) | 51.30 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 16 |
| Shank Diameter (mm) | 16.00 |
| Number of Drill Inserts | 3 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | TOGT |
| Compatible Insert Size Code | 080305 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 51.30 |
| Series | GDH |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Coolant Through | Yes |
