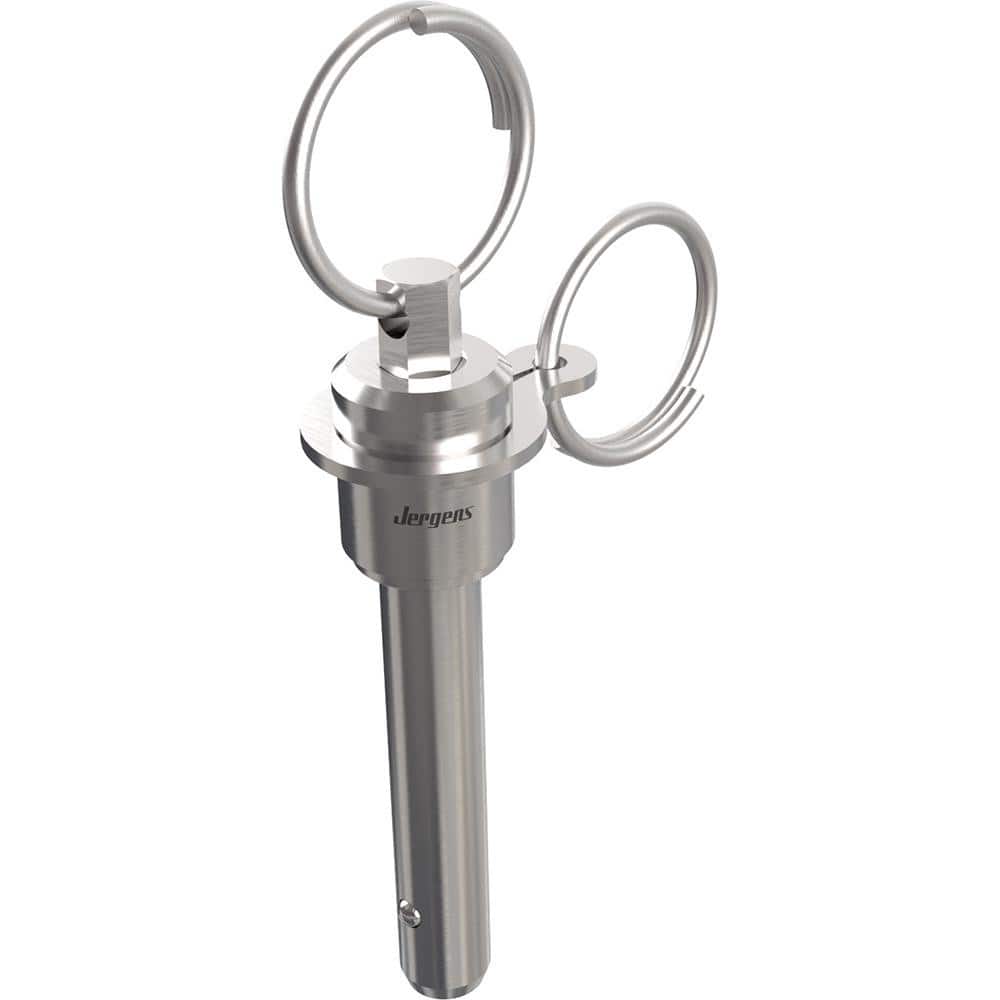

Ball Grip Quick-Release Pin: Ring Handle, 1″ Pin Dia, 3/4″ Usable Length 3.76″ OAL, 17-4 Stainless Steel, Stainless Steel Handle
Item #: 29614393
Brand: Jergens
Model #: 806361
Product Specifications
| Pin Type | Ball Grip Quick-Release |
| Handle Type | Ring Handle |
| Pin Diameter (Inch) | 1 |
| Pin Diameter (Decimal Inch) | 1.0000 |
| Usable Length (Inch) | 3/4 |
| Usable Length (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 3.7600 |
| Pin Material | Stainless Steel |
| Pin Material Grade | 17-4 |
| Ball Material | Stainless Steel |
| Ball Material Grade | 17-4 |
| Ball Hardness | Rockwell C40 |
| Handle Material | Stainless Steel |
| Breaking Strength | 147200 |
| Pin Finish/Coating | Passivated |
| Spindle Hardness | Rockwell C40 |
| Fastener Standard | MS17990; NAS1353-NAS1366; NASM 23460 |
