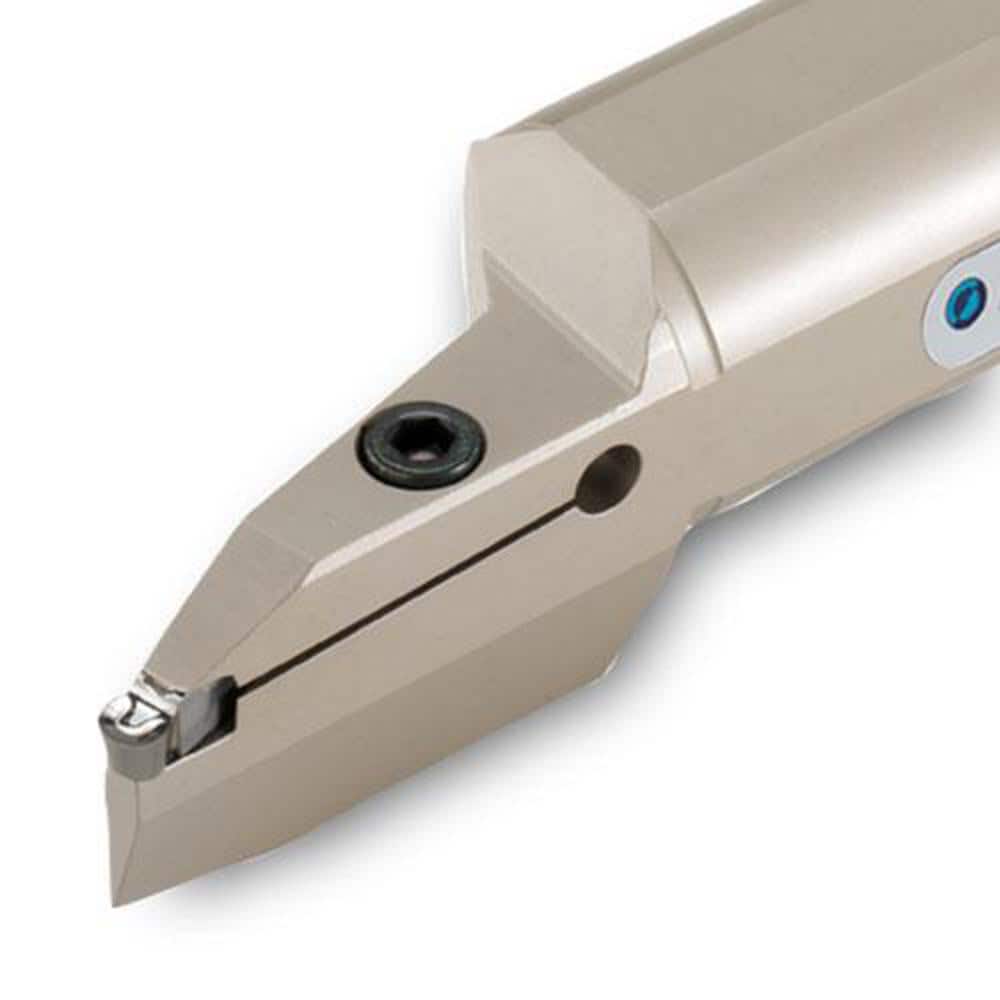

Indexable Grooving Toolholder: TGIUR38.1-6-15A, 0.1970″ Max Groove Width 1.9680″ Max Depth, Uses TD 6 & TS 6 Inserts, Through Coolant
Item #: 29484524
Brand: Ingersoll Cutting Tools
Model #: 6163537
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 6 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.9680 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Toolholder Style | TGIUR |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TD 6; TS 6 |
| Series | TGIUR/L |
| Shank Length (Decimal Inch) | 10.0300 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning |
| Center to Cutting Edge (Decimal Inch) | 0.7140 |
| Minimum Hole Diameter (Decimal Inch) | 6.3000 |
| Head Length (Decimal Inch) | 1.9700 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
