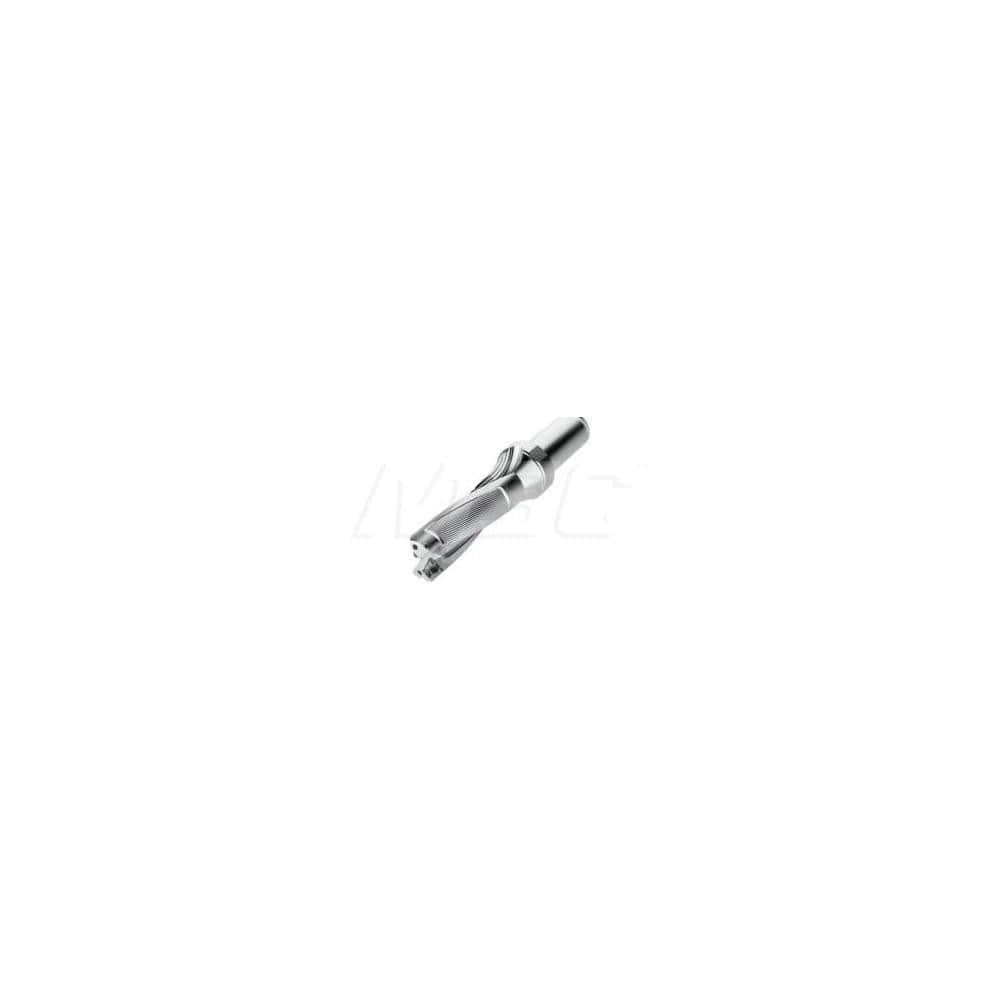

Indexable Insert Drills; Drill Style: SD523; Maximum Drill Diameter (Inch): 9/16; Maximum Drill Diameter (Decimal Inch): 0.5620; Maximum Drill Depth (Decimal Inch): 1.8830; Shank Type: Weldon Flat; Shank Diameter (Inch): 1; Shank Diameter (Decimal Inch):
Item #: 29449857
Brand: Seco
Model #: 03080485
Product Specifications
| Drill Style | SD523 |
| Maximum Drill Diameter (Inch) | 9/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.5620 |
| Maximum Drill Depth (Decimal Inch) | 1.8830 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | SPGX |
| Compatible Insert Size Code | 050204; 0502 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.1200 |
| Overall Length (mm) | 5.12 |
| Series | SD523 |
| Flute Length (Decimal Inch) | 1.8830 |
| Shank Length (Decimal Inch) | 2.2500 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Coolant Through | Yes |
