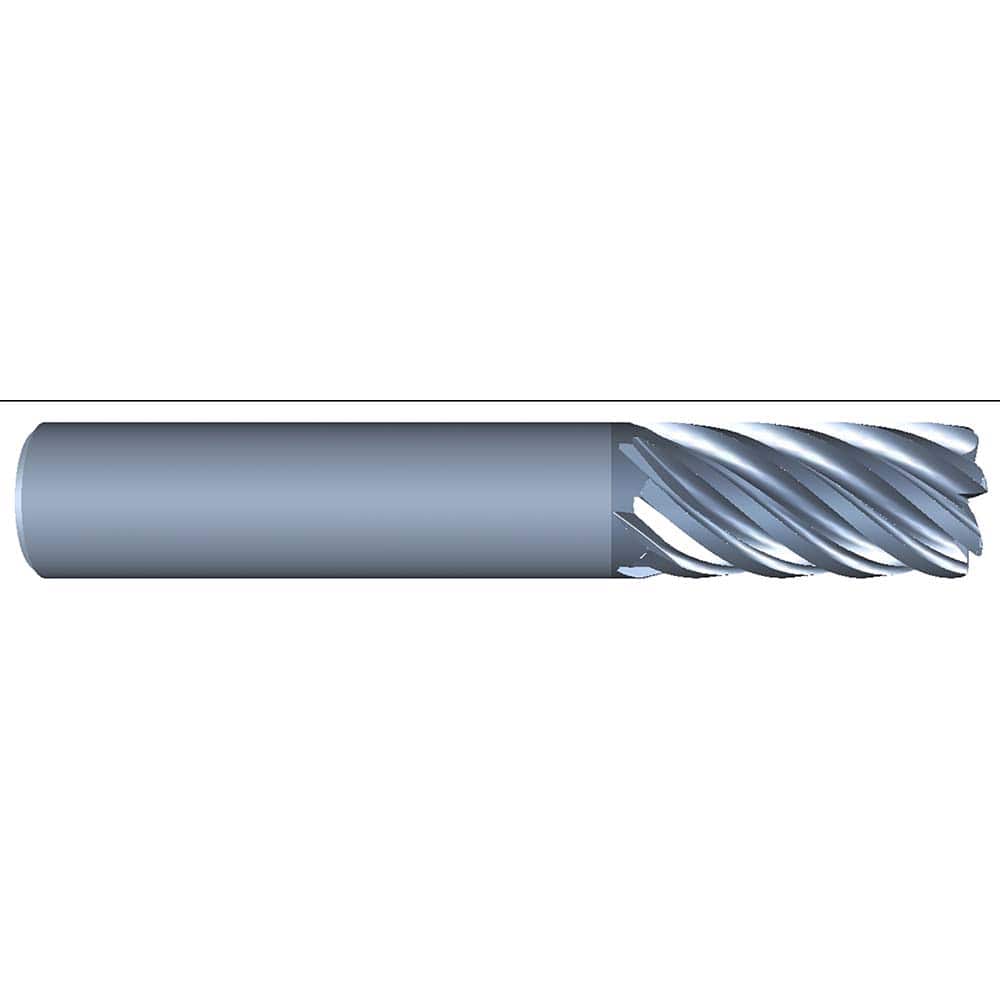

Corner Radius End Mill: 3/4″ Dia, 1-3/4″ LOC, 0.06″ Radius, 7 Flutes, Solid Carbide 4″ OAL, 3/4″ Shank Dia, Variable ° Helix, AlCrN Coated, Corner Radius End, Centercutting, Series Eliminator
Item #: 29259751
Brand: Eliminator
Model #: 1380-7500-060
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 1-3/4 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Number Of Flutes | 7 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | Variable |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Single Or Double End | Single |
| Coating/Finish | AlCrN |
