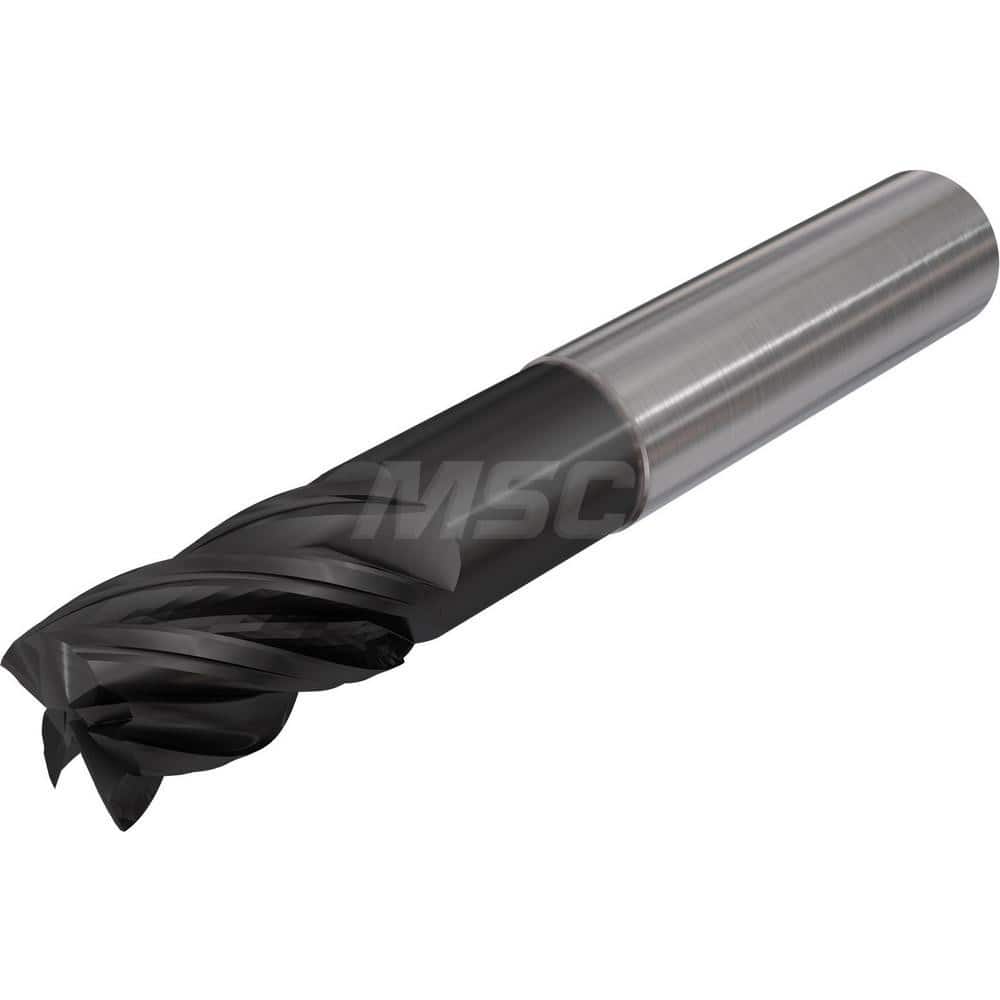

Corner Radius End Mill: 1″ Dia, 2″ LOC, 0.03″ Radius, 5 Flutes, Solid Carbide 4-1/2″ OAL, 1″ Shank Dia, 38 ° Helix, TiAlCN Coated, Corner Radius End, Centercutting, Series Flash Solid
Item #: 29212123
Brand: Iscar
Model #: 3398406
Product Specifications
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (Inch) | 1 |
| Length of Cut (Inch) | 2 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 38 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 4-1/2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Submicron |
| Single Or Double End | Single |
| Manufacturers Catalog Number | ECI-5 1.-2.C.03VF4.5 |
| Coating/Finish | TiAlCN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.0000 |
