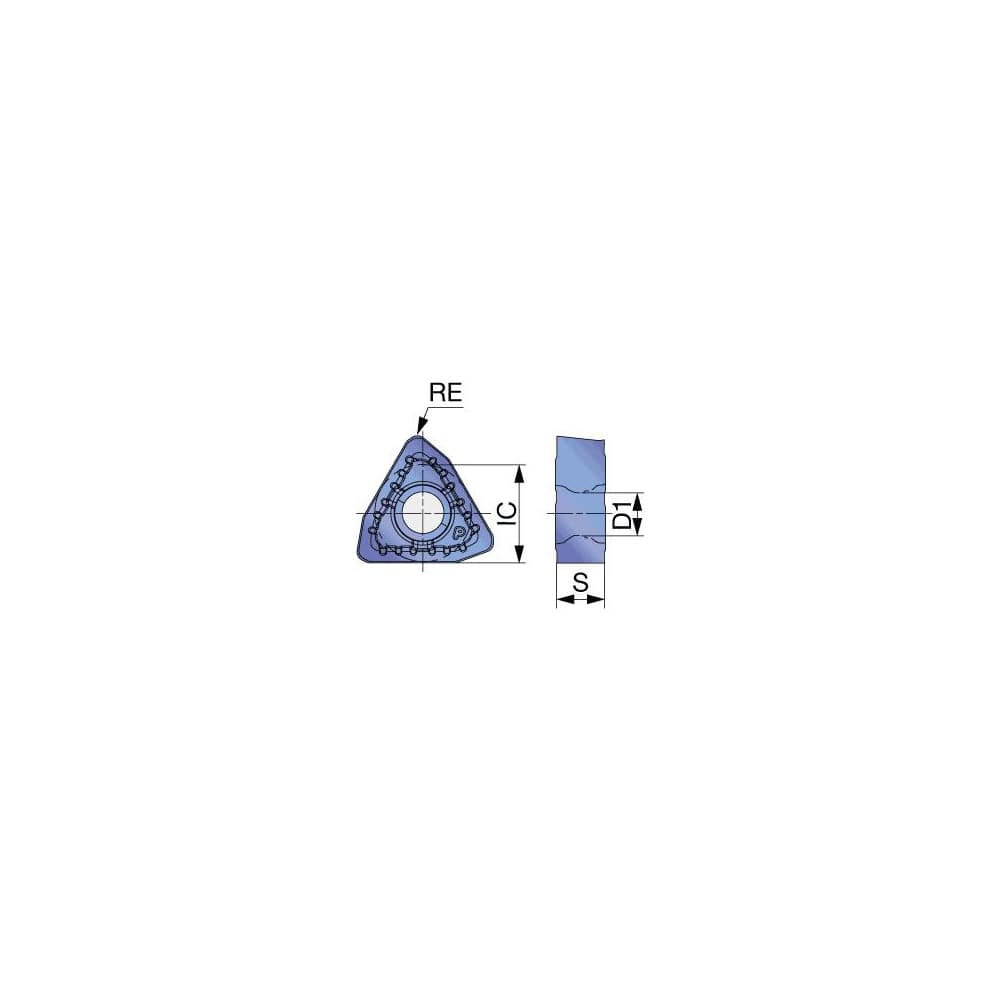

Indexable Drill Insert: WWMU060306DJ AH3135, Carbide Coated, 80 ° Trigon
Item #: 29156163
Brand: Tungaloy
Model #: 6767667
Product Specifications
| Insert Style | WWMU |
| Insert Size Code | 060306 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH3135 |
| Inscribed Circle (Decimal Inch) | 0.2640 |
| Cutting Direction | Neutral |
| Corner Radius (Decimal Inch) | 0.0236 |
| Chipbreaker | DJ |
| Series | WWMU |
| Coating Process | PVD |
| Shape | Trigon |
| Hole Diameter (Decimal Inch) | 0.1180 |
| Number Of Cutting Edges | 6 |
| Relief Angle | 0 |
| Rake | Negative |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; H; M; N |
| Secondary Workpiece Material | Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K |
| Ansi Code | WWMU060306R-DJ AH3135 |
| Iso Code | WWMU060306R-DJ AH3135 |
| Included Angle Degree | 80.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1140 |
| Coating/Finish | Coated |
