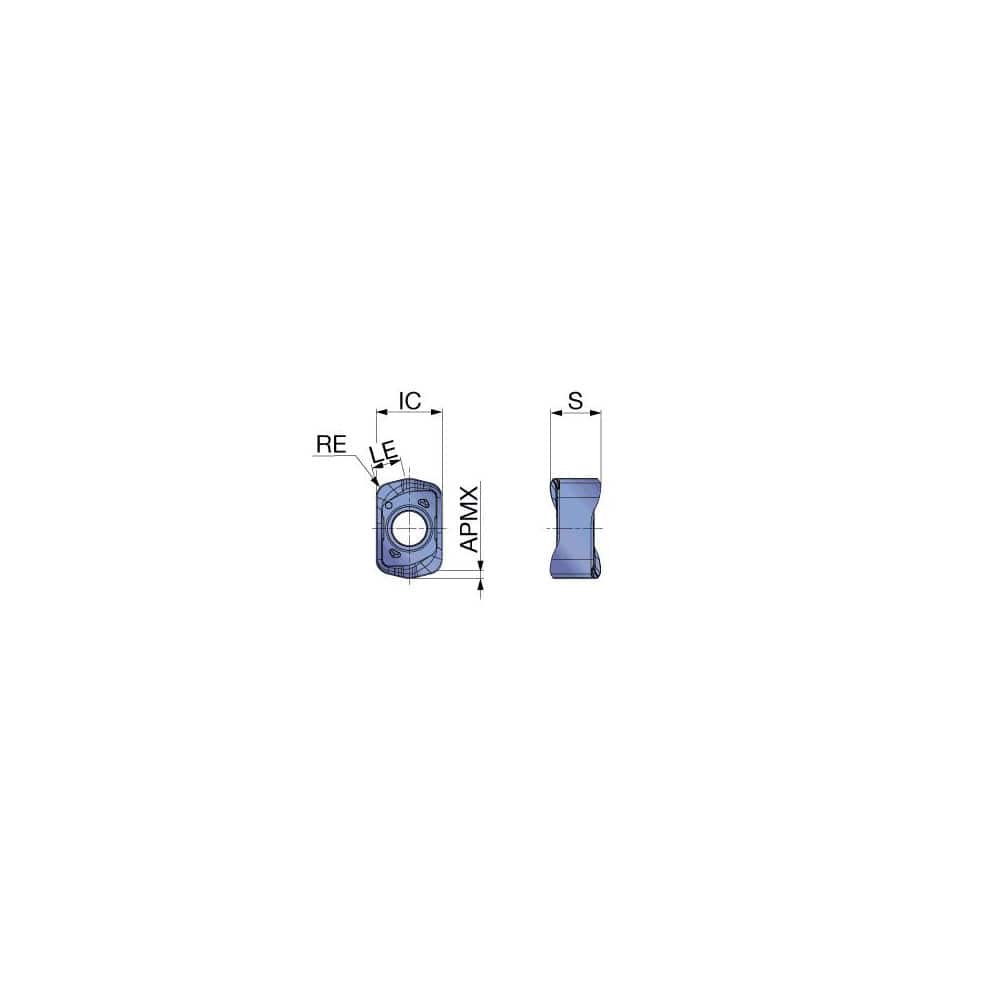

Milling Insert: LNMU0202ZER-MM AH8015, AH8015, Solid Carbide N/A Finish,
Item #: 29156106
Brand: Tungaloy
Model #: 6837436
Product Specifications
| Insert Style | LNMU |
| Insert Size Code | 0202 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH8015 |
| Inscribed Circle (Decimal Inch) | 0.1570 |
| Corner Radius (Decimal Inch) | 0.0350 |
| Insert Hand | Right Hand |
| Relief Angle | 0.00 |
| Series | LNMU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.0700 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Super-Alloys & Titanium |
| Primary Workpiece Material Code | S; H; M |
| Ansi Code | LNMU0202ZER-MM AH8015 |
| Iso Code | LNMU0202ZER-MM AH8015 |
| Chip Breaker | MM |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1220 |
