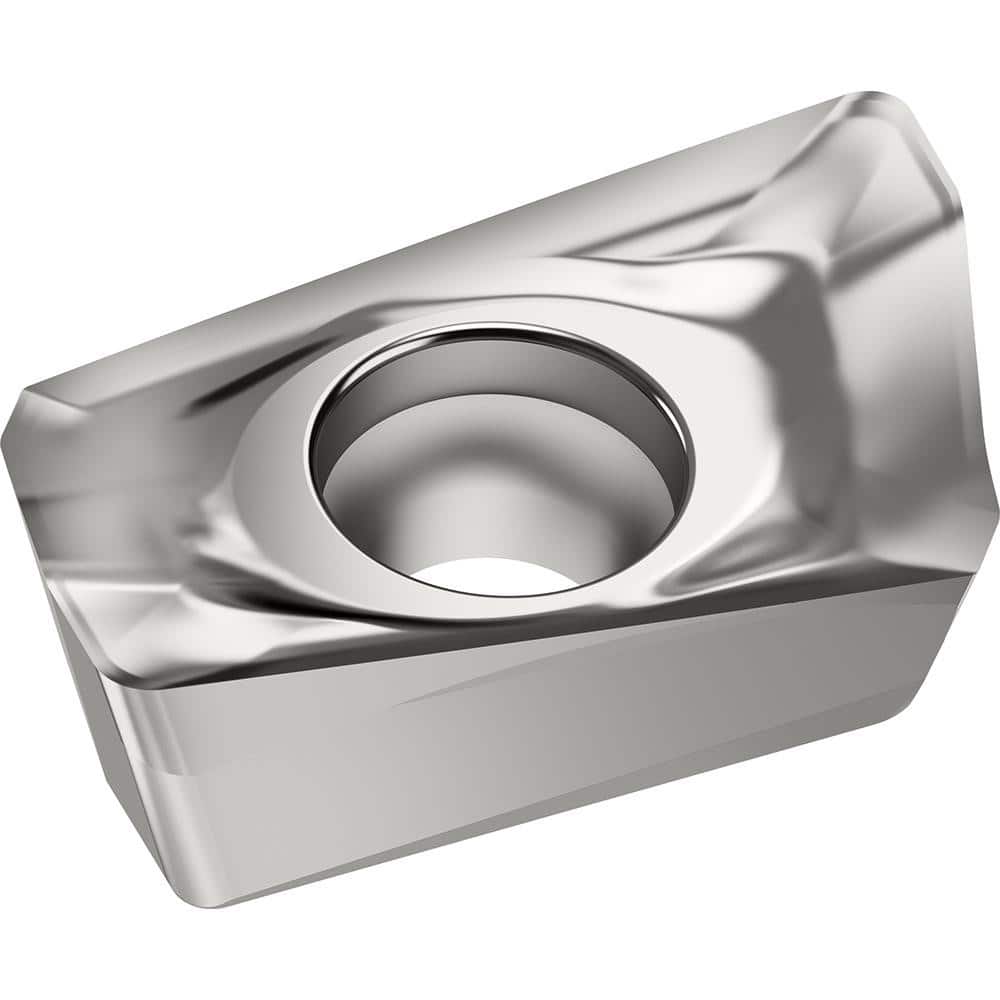

Milling Insert: WK10, Solid Carbide N/A Finish,
Item #: 28918746
Brand: Walter
Model #: 8131071
Product Specifications
| Insert Style | BCHT |
| Insert Size Code | 120404R |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WK10 |
| Inscribed Circle (Decimal Inch) | 0.2990 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Insert Hand | Right Hand |
| Relief Angle | 7.00 |
| Series | BCHT12 |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Maximum Depth of Cut (Decimal Inch) | 0.5430 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Diamond |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Chip Breaker | K85 |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1890 |
