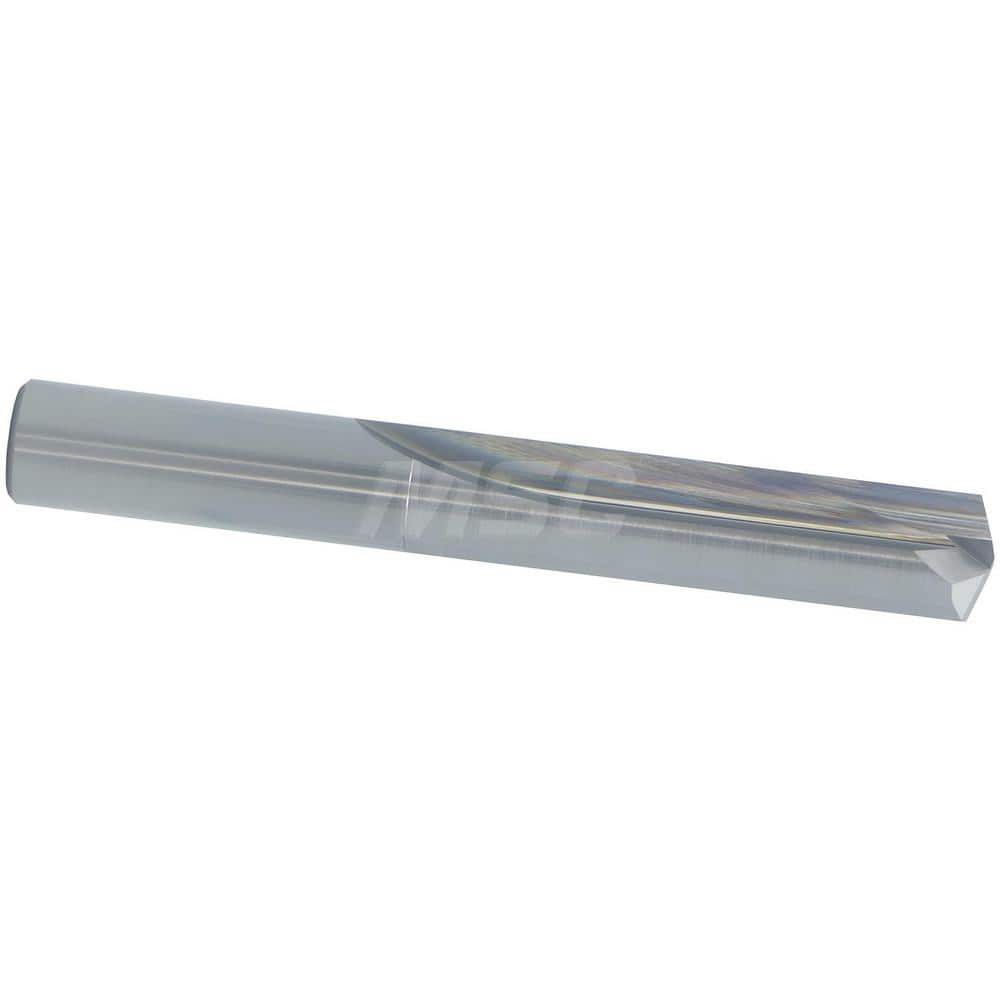

Die Drill Bit: 0.4724″ Dia, 140 °, Solid Carbide Bright Finish, 2-1/8″ Flute, 3-5/8″ OAL, Series 470
Item #: 28681328
Brand: Hertel
Model #: CBDD-211
Product Specifications
| Drill Bit Type | Straight-Flute |
| Tool Material | Carbide |
| Coating/Finish | Bright |
| Flute Length (Inch) | 2-1/8 |
| Flute Length (Decimal Inch) | 2.1250 |
| Drill Point Angle | 140 |
| Overall Length (Inch) | 3-5/8 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.4724 |
| Material Grade | C2 |
| Overall Length (Decimal Inch) | 3.6250 |
| Series | 470 |
| Number Of Flutes | 2 |
| Point Type | Notched |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Primary Workpiece Material | Stainless Steel; Chrome Alloy; Heat-Treated Alloy; Steel; Nickel Alloy; Titanium Alloy |
| Secondary Workpiece Material | Stainless Steel; Chrome Alloy; Heat-Treated Alloy; Steel; Nickel Alloy; Titanium Alloy |
