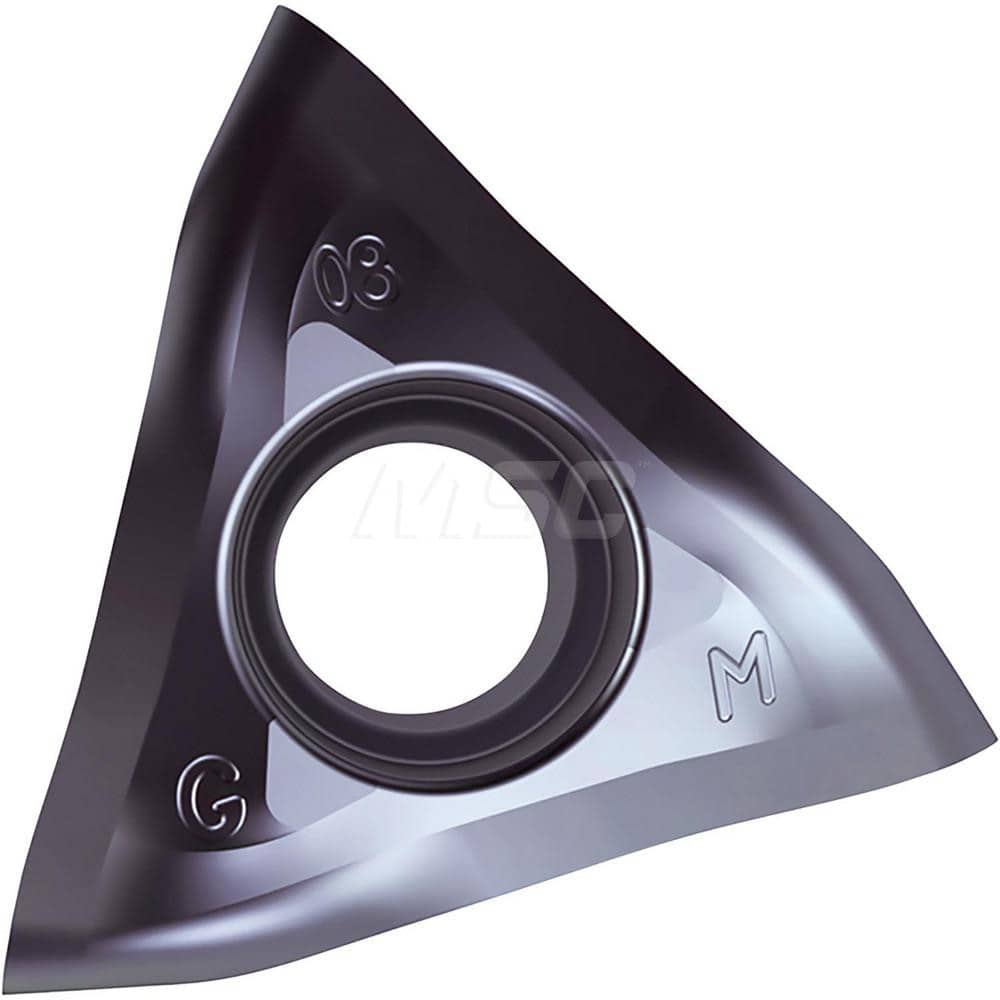

Kyocera TOMT 060504ERGM PR1535 Grade PVD Carbide, 60 Degree Triangle, Positive Rake Angle, Right-Hand Milling insert for Roughing in (M) Precipitation Hardened Stainless Steel and (P) Free-Cutting Steel
Item #: 28525012
Brand: Kyocera
Model #: TLC40051
Product Specifications
| Insert Style | TOMT |
| Insert Size | 060504 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1535 |
| Inscribed Circle (mm) | 7.20 |
| Corner Radius (mm) | 0.40 |
| Insert Hand | Right Hand |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.40 |
| Maximum Depth of Cut (mm) | 6.00 |
| Rake | Positive |
| Ansi Code | TOMT060504ERGMPR1535 |
| Iso Code | TOMT060504ER-GM |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | TOMT060504ERGMPR1535 |
| Cutter Series Compatibility | MEV |
| Chip Breaker | GM |
| Cutting Direction | Right Hand |
| Shape | Triangle |
| Insert Holding Method | Screw |
| Thickness (mm) | 5.70 |
| Coating/Finish | Megacoat Nano |
| Length | 7.20 |
| Width (Mm - 2 Decimals) | 7.20 |
