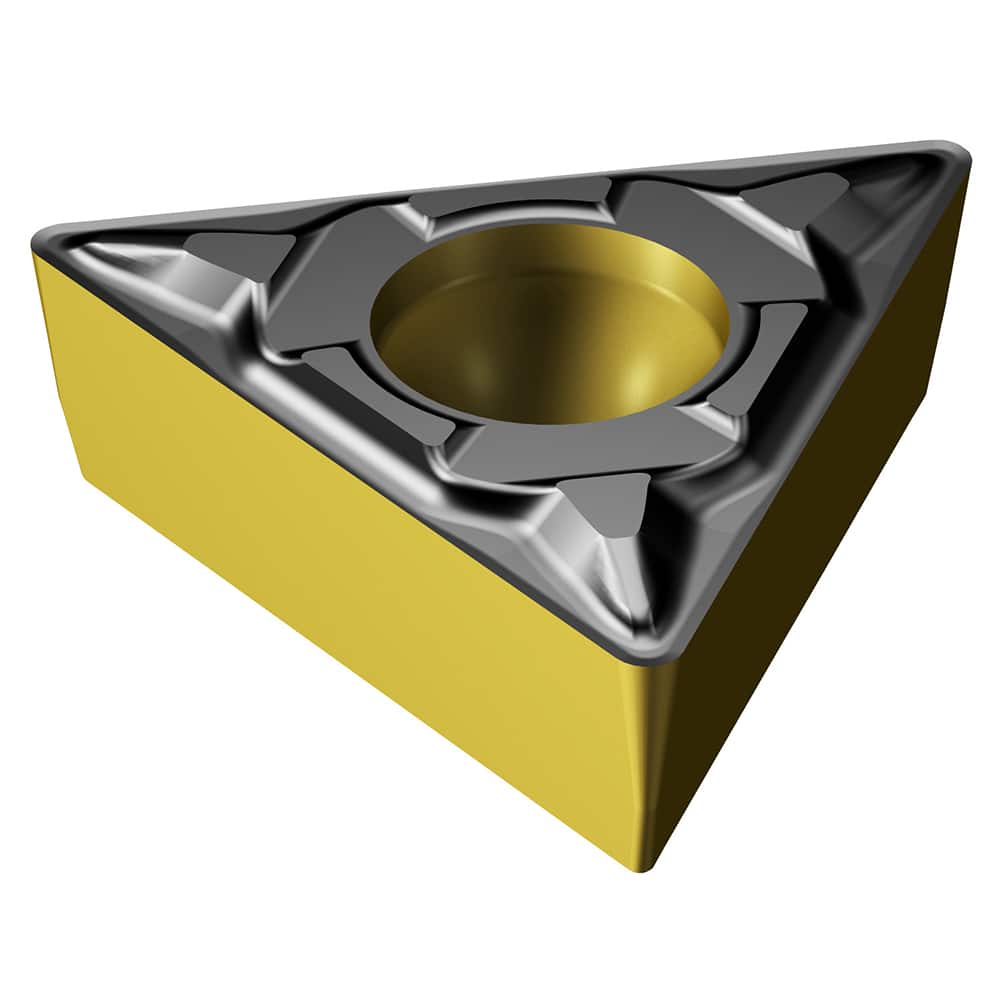

Sandvik Coromant - TCMT1.81.51-PF 4425 Carbide Turning Insert
Item #: 28523561
Brand: Sandvik Coromant
Model #: 7861042
Product Specifications
Insert Style | TCMT |
Insert Size | 090204 |
Material | Carbide |
Inscribed Circle (Inch) | 7/32 |
Thickness (Inch) | 3/32 |
Corner Radius (Decimal Inch) | 0.0156 |
Manufacturer's Grade | 4425 |
Coating | Al2O3/TiN/TiCN |
ISO Number | TCMT 09 02 04-PF 4425 |
Relief Angle | 7.000 |
Coating Process | CVD |
Manufacturers Catalog Number | TCMT 1.8(1.5)1-PF |
Primary Workpiece Material | P; K |
Included Angle | 60 |
Cutting Direction | Neutral |
Insert Hand | Neutral |
Finish/Coating | Al2O3/TiN/TiCN |
Series/List | CoroTurn 107 |
Shape | Triangle |
