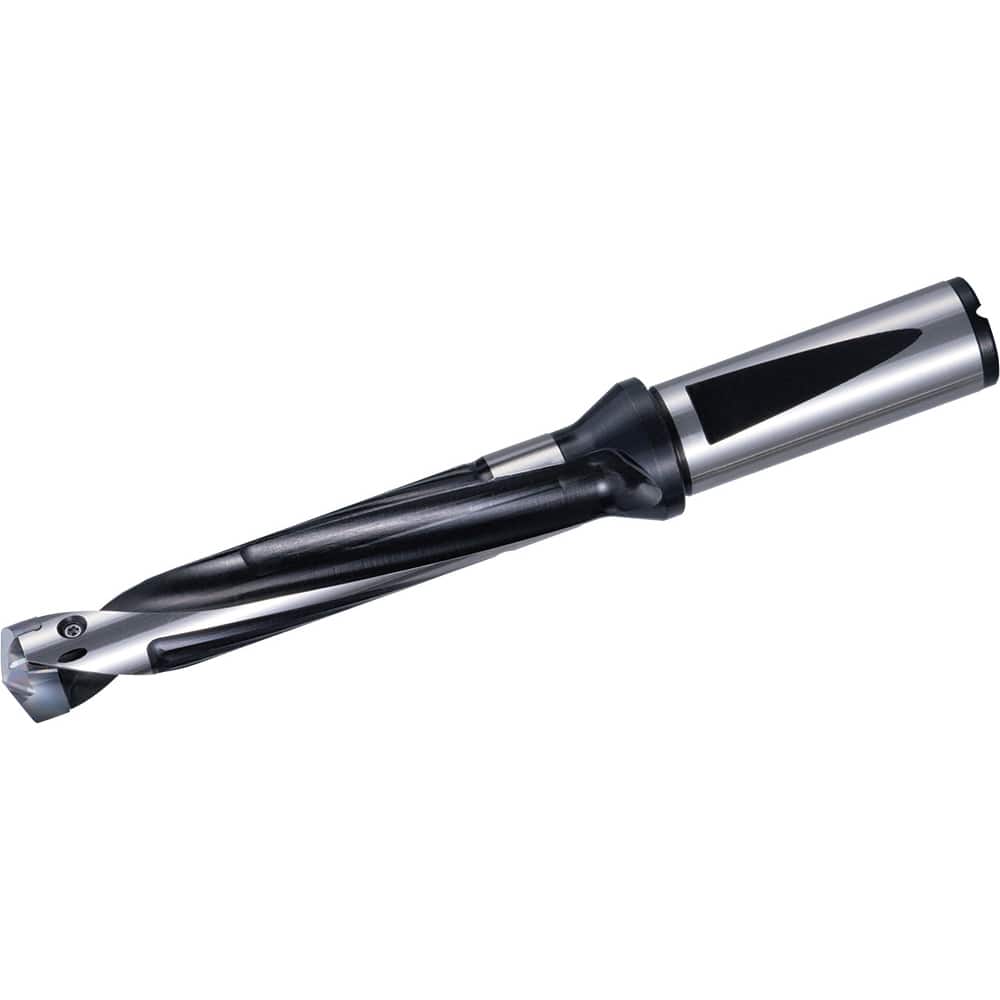

Replaceable Tip Drill: 25 to 25.5 mm Drill Dia, 130 mm Max Depth, 25 mm Flange Shank Seat Size 080, 222 mm OAL, Through Coolant
Item #: 28522456
Brand: Kyocera
Model #: THD08751
Product Specifications
| Minimum Drill Diameter (mm) | 25.00 |
| Maximum Drill Diameter (mm) | 25.50 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 130.00 |
| Shank Type | Flange |
| Insert Style | DA |
| Insert Seat Size | 080 |
| Shank Diameter (mm) | 25.00 |
| Maximum Drill Depth Range (mm) | 125.00 to 160.00 |
| Overall Length (mm) | 222.00 |
| Series | Magic Drill DRA |
| Toolholder Style | SF DRA |
| Flute Length (mm) | 130.00 |
| Body Length | 166.00 |
| Shank Length (mm) | 56.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
