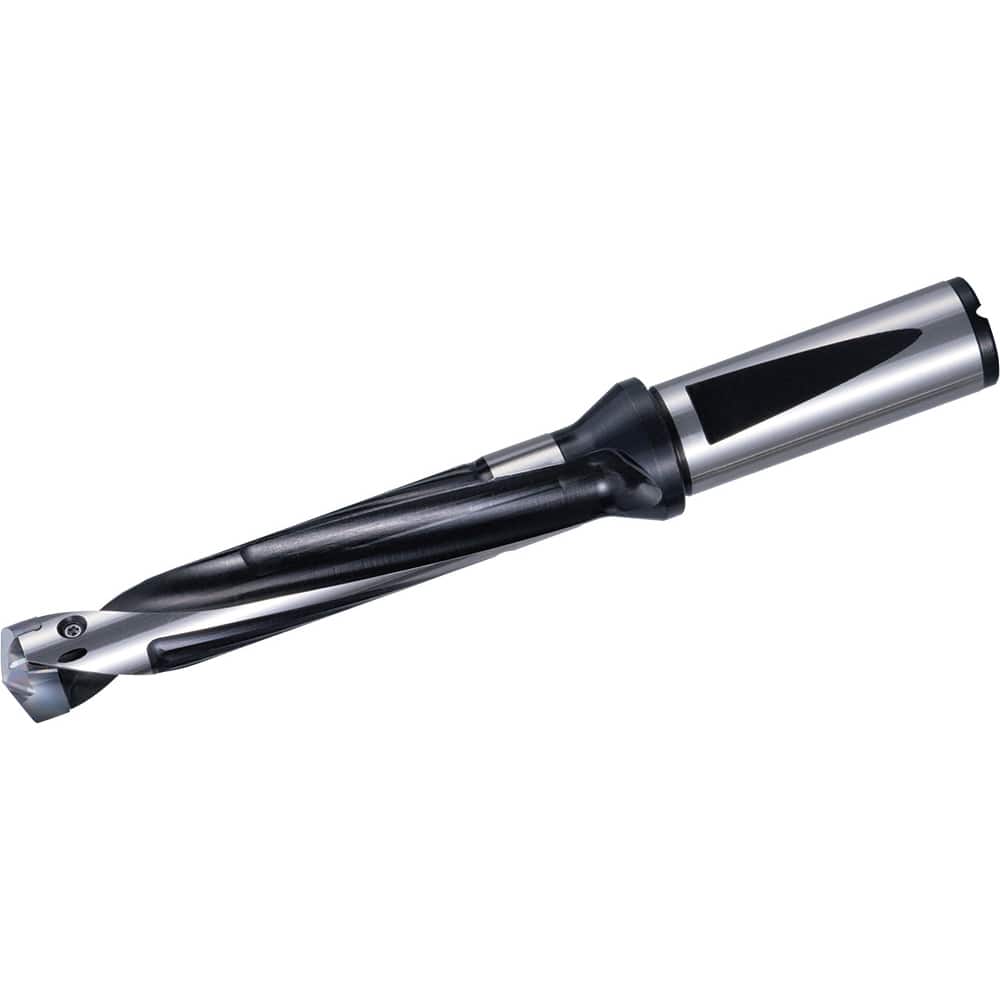

Replaceable Tip Drill: 14 to 14.49 mm Drill Dia, 72.5 mm Max Depth, 16 mm Flange Shank Seat Size 080, 141 mm OAL, Through Coolant
Item #: 28522357
Brand: Kyocera
Model #: THD08641
Product Specifications
| Minimum Drill Diameter (mm) | 14.00 |
| Maximum Drill Diameter (mm) | 14.49 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 72.50 |
| Shank Type | Flange |
| Insert Style | DA |
| Insert Seat Size | 080 |
| Shank Diameter (mm) | 16.00 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Overall Length (mm) | 141.00 |
| Series | Magic Drill DRA |
| Toolholder Style | SF DRA |
| Flute Length (mm) | 72.50 |
| Body Length | 93.00 |
| Shank Length (mm) | 48.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
