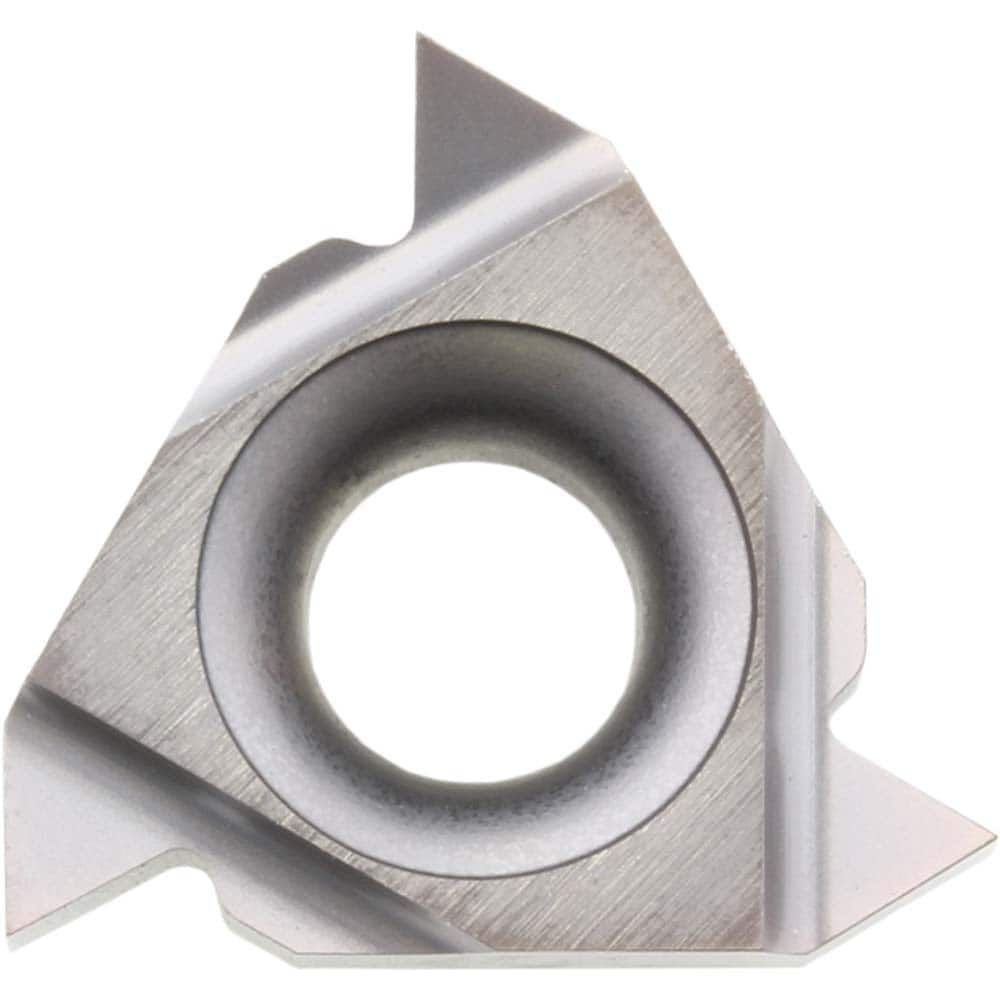

Kyocera - 22IRN60 GW15 Carbide Laydown Threading Insert
Item #: 28512796
Brand: Kyocera
Model #: 8827894
Product Specifications
| Material | Carbide |
| Insert Style | 22IR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | Metric; UN |
| Manufacturer's Grade | GW15 |
| Threads Per Inch | 7-5 |
| Pitch (mm) | 3.50-5.00 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (mm) | 4.9000 |
| Included Angle of Threading Tip | 60 |
| Hole Diameter (mm) | 4.8500 |
| Coating | Uncoated |
| Coating Process | Uncoated |
| Corner Radius (mm) | 0.23 |
| Series | INTH |
| Insert Size | 22 |
| Applications | Internal Threading |
| Series Name | INTH |
