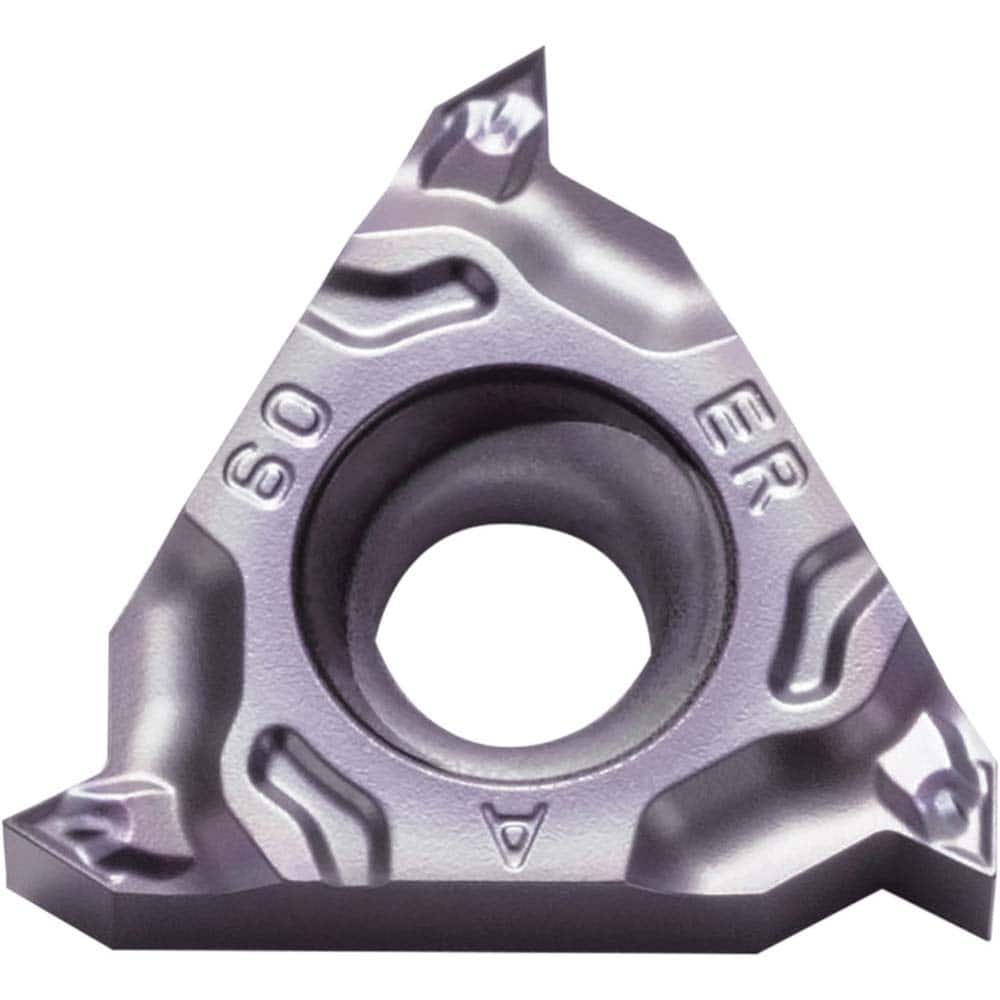

Kyocera - 16ERAG60TQ PR1515 Carbide Laydown Threading Insert
Item #: 28512671
Brand: Kyocera
Model #: 8849015
Product Specifications
| Material | Carbide |
| Insert Style | 16ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | Metric; UN |
| Manufacturer's Grade | PR1515 |
| Threads Per Inch | 48-8 |
| Pitch (mm) | 0.50-3.00 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (mm) | 3.6800 |
| Included Angle of Threading Tip | 60 |
| Hole Diameter (mm) | 4.0000 |
| Coating | Megacoat Nano |
| Coating Process | PVD |
| Corner Radius (mm) | 0.06 |
| Chipbreaker | TQ |
| Series | EXTH |
| Insert Size | 16 |
| Applications | External Threading |
| Series Name | EXTH |
