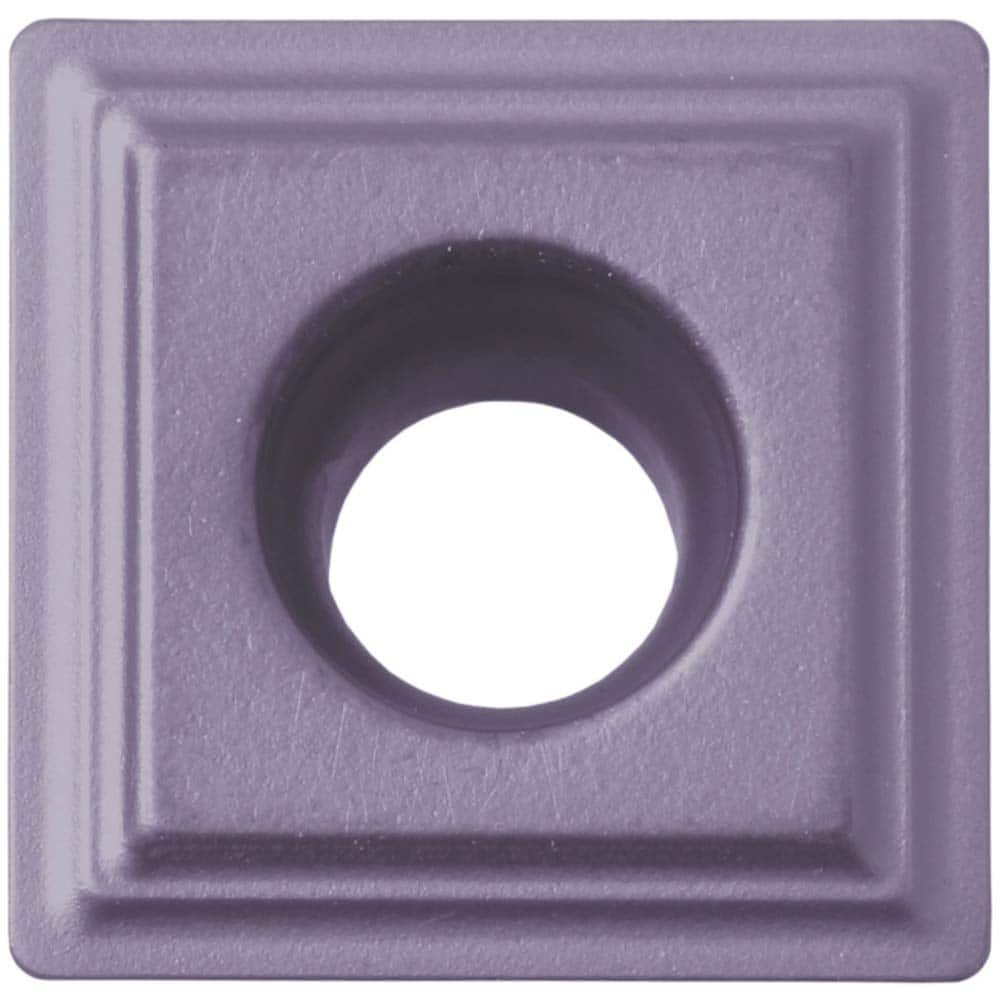

SPMT060208EZ PR1210 Carbide Milling Insert Megacoat Finish, 0.0937″ Thick x 1/4″ Wide
Item #: 28509628
Brand: Kyocera
Model #: TKA05474
Product Specifications
| Insert Style | SPMT |
| Insert Size | 060208 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1210 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness Range (Decimal Inch) | 0.0000 to 0.1000 |
| Corner Radius (mm) | 0.80 |
| Insert Hand | Neutral |
| Series | MEF |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.50 |
| Rake | Positive |
| Manufacturers Catalog Number | SPMT060208EZPR1210 |
| Chip Breaker | E-Z |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating/Finish | Megacoat |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0937 |
| Multi-Use Tool | Yes |
