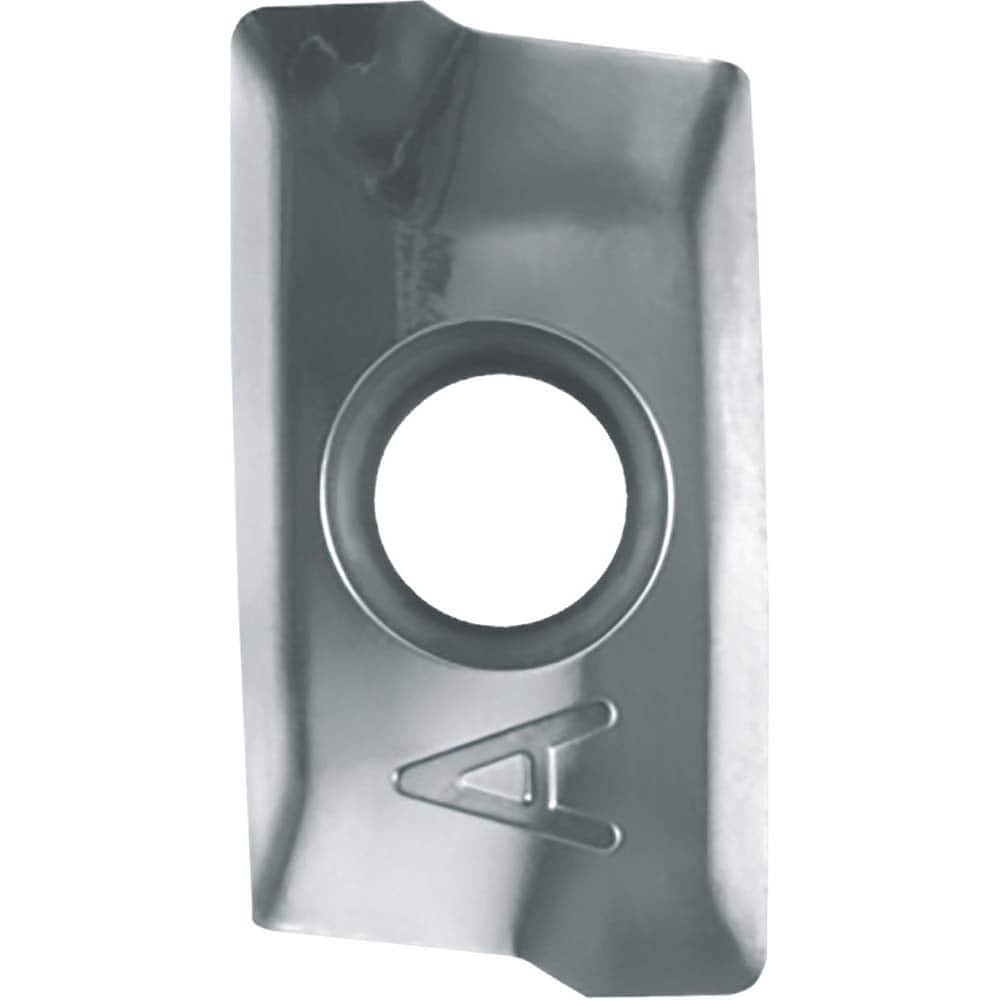

Kyocera - BDGT170416FRJA GW25 Carbide Milling Insert
Item #: 28509321
Brand: Kyocera
Model #: 8824510
Product Specifications
| Insert Style | BDGT |
| Insert Size | 170416 |
| Material | Carbide |
| Manufacturer's Grade | GW25 |
| Coating | Uncoated |
| Width (mm) | 9.60 |
| Thickness (mm) | 4.9000 |
| Corner Radius (mm) | 1.60 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | S |
| Hole Diameter (mm) | 4.4000 |
| Rake | Positive |
| Coating Process | Uncoated |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | FR-JA |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | BDGT170416FRJAGW25 |
| ISO Number | BDGT 170416 FR-JA GW25 |
| Length of Cut (mm) | 17.0000 |
| Cutting Direction | Right Hand |
