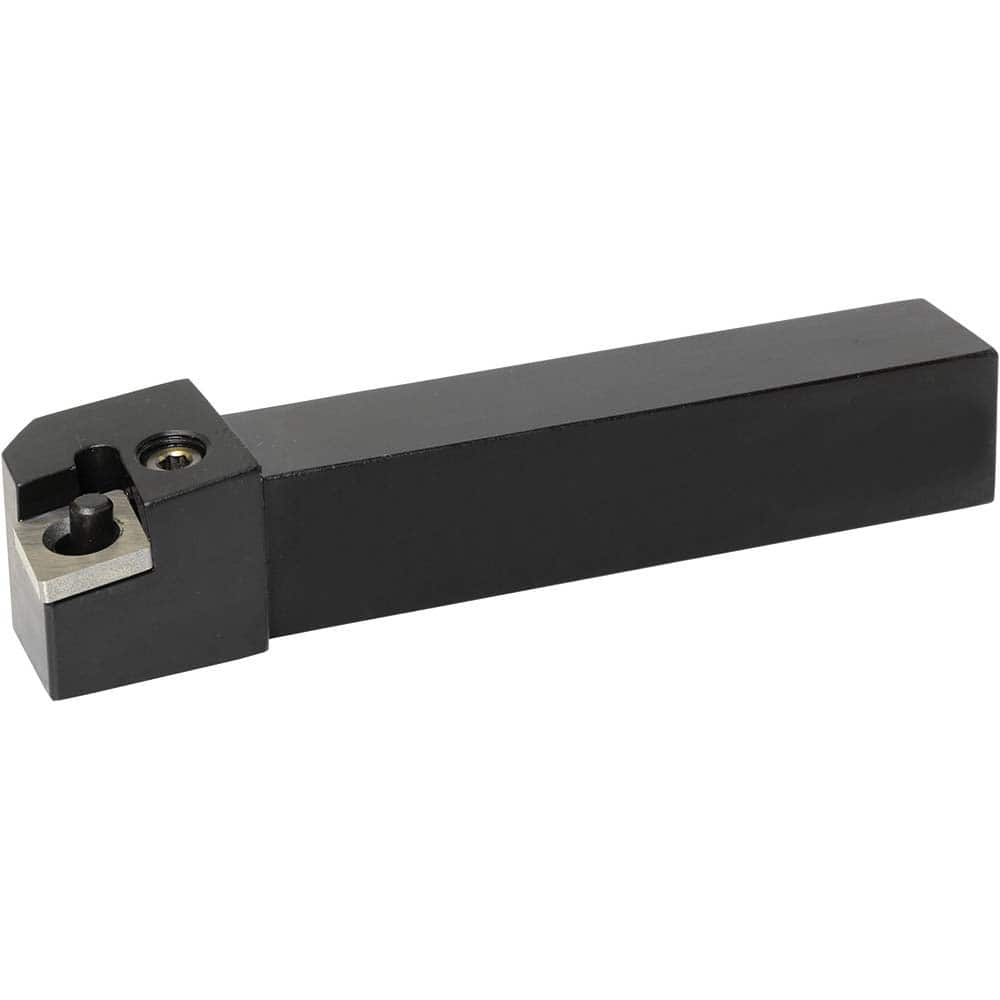

Kyocera - RH PCLN -6° (Axial), -6° (Radial)° Negative Rake Indexable Turning Toolholder
Item #: 28505600
Brand: Kyocera
Model #: 8845477
Product Specifications
| Hand of Holder | Right Hand |
| Toolholder Style | PCLN |
| Rake | Negative |
| Rake Angle | -6 (Axial);-6 (Radial) |
| Series | PCLN |
| Lead Angle | 95 |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Insert Compatibility | CNMG43?; CNMM43?; CNGG43?; CNMA43?; CNGA43? |
| Multi-Use Application | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Length (mm) | 27.00 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Toolholder Material | Steel |
| ISO Number | PCLNR2020H-12 |
| Through Coolant | No |
| Overall Length (mm) | 100.00 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Right Hand |
