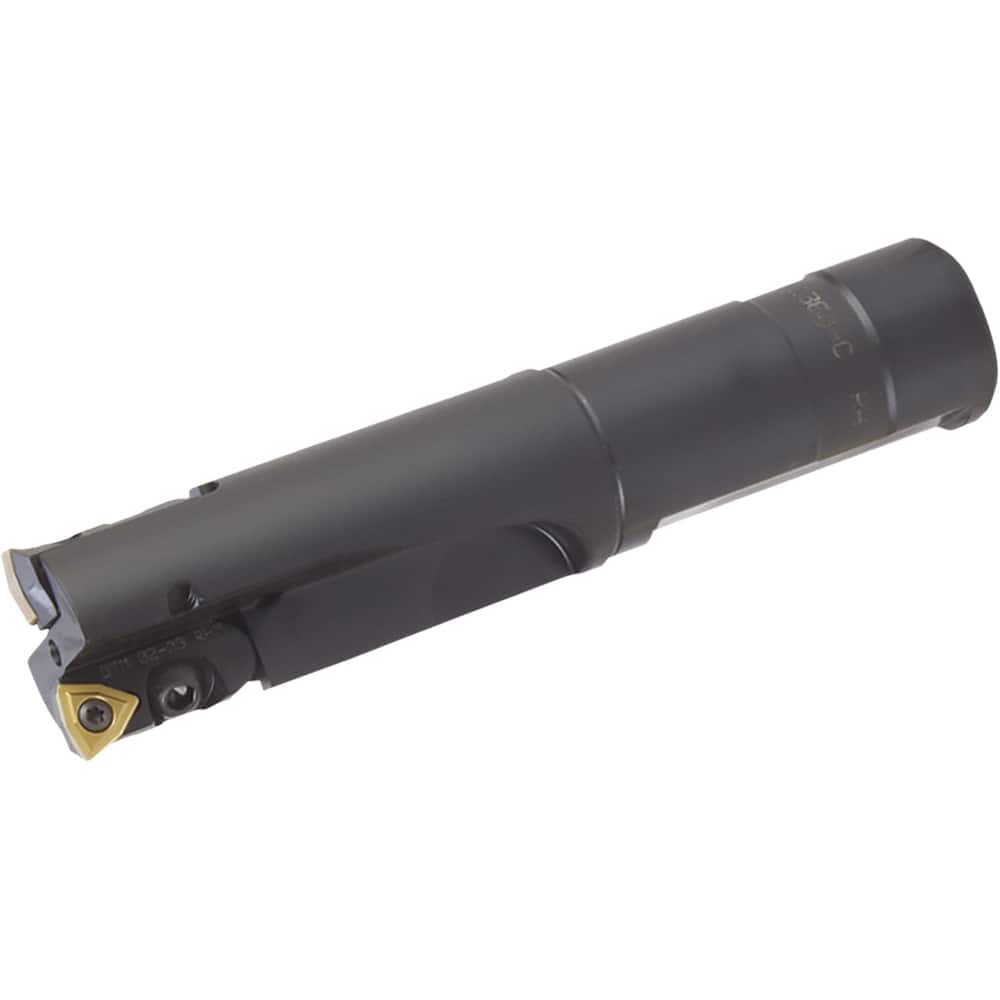

Indexable Insert Drills; Drill Style: CD; Drill Diameter (Decimal Inch): 0.0945; Maximum Drill Diameter (Decimal Inch): 2.4000; Maximum Drill Depth (Inch): 5-1/2; Maximum Drill Depth (Decimal Inch): 5.5000; Shank Type: Straight-Cylindrical; Shank Diameter
Item #: 28495919
Brand: Kyocera
Model #: OTM86092
Product Specifications
| Drill Style | CD |
| Drill Diameter (Decimal Inch) | 0.0945 |
| Maximum Drill Diameter (Decimal Inch) | 2.4000 |
| Maximum Drill Depth (Inch) | 5-1/2 |
| Maximum Drill Depth (Decimal Inch) | 5.5000 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 2.25xD |
| Flute Length (Decimal Inch) | 5.5000 |
| Body Length (Decimal Inch) | 6.5000 |
| Shank Length (Decimal Inch) | 3.2500 |
| Overall Length/Projection (Decimal Inch) | 9.7500 |
| Insert Compatibility | WCMX |
| Collar Diameter (Decimal Inch) | 2.3800 |
| Coolant Through | Yes |
