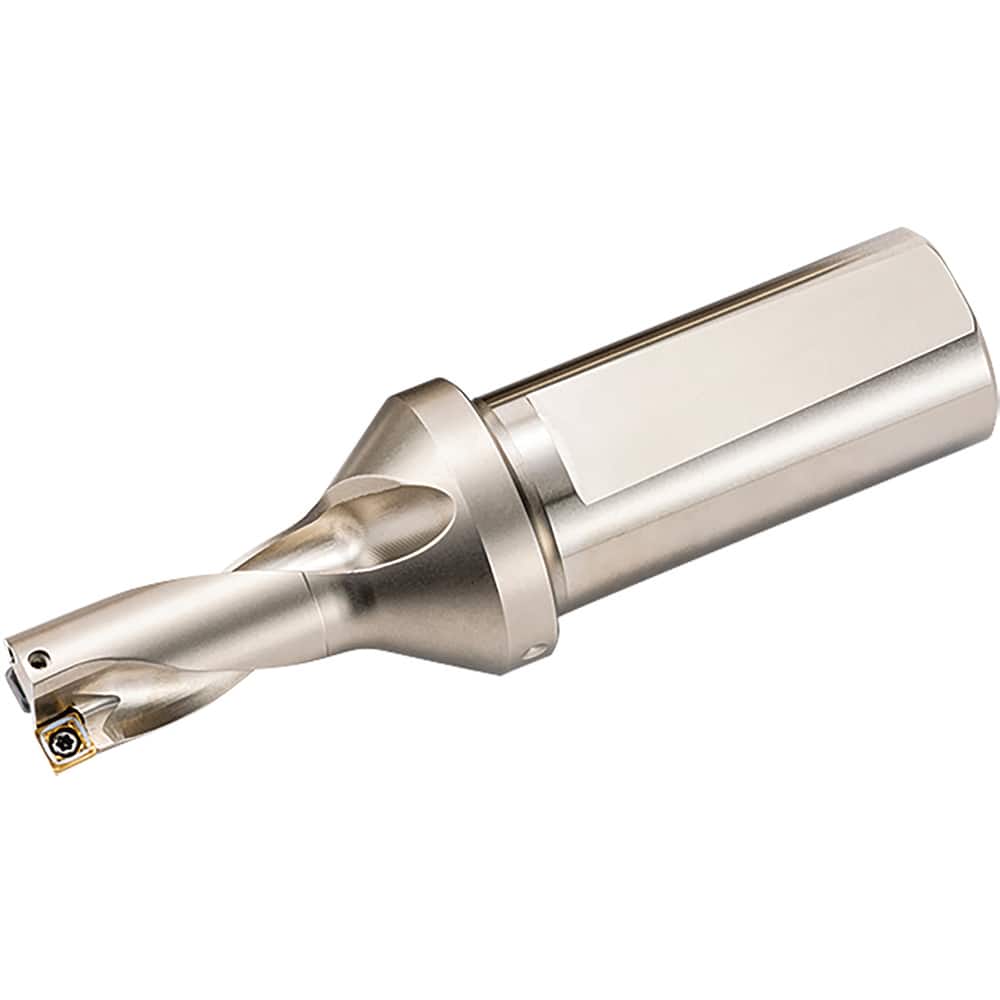

Indexable Insert Drills; Drill Style: DRV; Drill Diameter (Decimal Inch): 1.7500; Maximum Drill Diameter (Decimal Inch): 1.7500; Drill Diameter (Inch): 1-3/4; Maximum Drill Depth (Inch): 3-1/2; Maximum Drill Depth (Decimal Inch): 3.5000; Shank Type: Strai
Item #: 28495570
Brand: Kyocera
Model #: THD12024
Product Specifications
| Drill Style | DRV |
| Drill Diameter (Decimal Inch) | 1.7500 |
| Maximum Drill Diameter (Decimal Inch) | 1.7500 |
| Drill Diameter (Inch) | 1-3/4 |
| Maximum Drill Depth (Inch) | 3-1/2 |
| Maximum Drill Depth (Decimal Inch) | 3.5000 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 2xD |
| Flute Length (Decimal Inch) | 3.5000 |
| Body Length | 121.30 |
| Shank Length (mm) | 69.00 |
| Overall Length/Projection (Decimal Inch) | 7.4921 |
| Insert Compatibility | Inboard Insert: SCMT140510...-I; Outboard Insert: SCMT140508...-E |
| Collar Diameter (mm) | 49.00 |
| Coolant Through | Yes |
