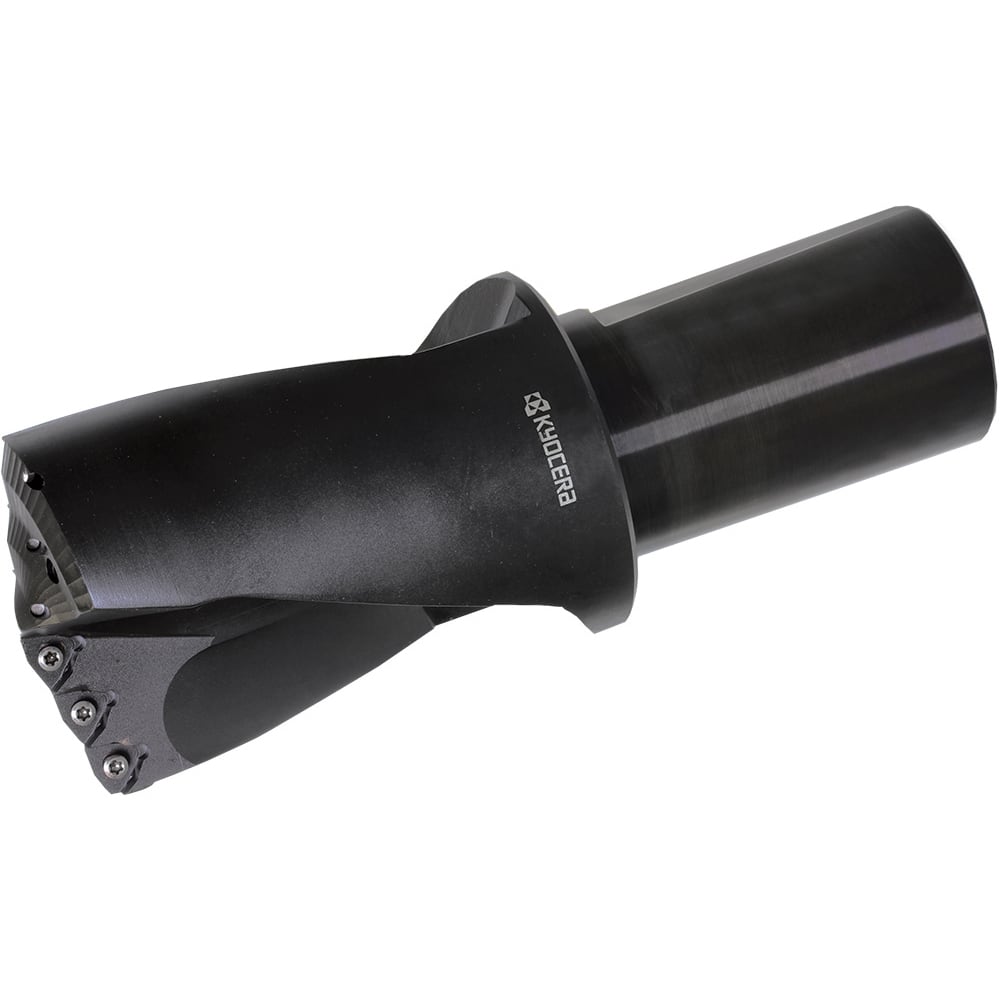

Indexable Insert Drills; Drill Style: DR; Maximum Drill Diameter (mm): 49.00; Drill Diameter (mm): 49.00; Maximum Drill Depth (mm): 85.85; Shank Type: Straight-Cylindrical; Shank Diameter (Inch): 1-1/4; Shank Diameter (Decimal Inch): 1.2500; Number of Dri
Item #: 28495125
Brand: Kyocera
Model #: OTM86279
Product Specifications
| Drill Style | DR |
| Maximum Drill Diameter (mm) | 49.00 |
| Drill Diameter (mm) | 49.00 |
| Maximum Drill Depth (mm) | 85.85 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 4 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 1.75xD |
| Flute Length (Decimal Inch) | 3.3800 |
| Body Length (Decimal Inch) | 4.5000 |
| Shank Length (Decimal Inch) | 2.2800 |
| Overall Length/Projection (mm) | 172.21 |
| Insert Compatibility | WCMX |
| Coolant Through | Yes |
