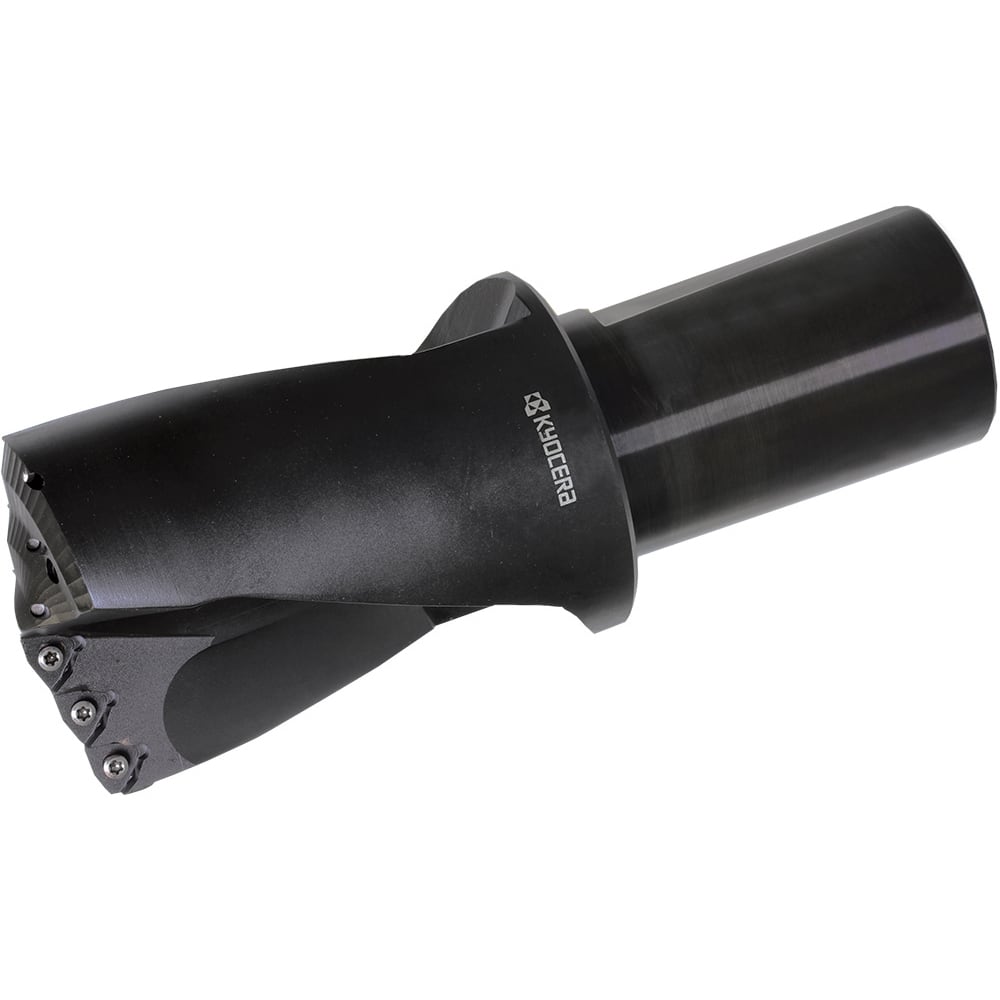

Indexable Insert Drills; Drill Style: DR; Drill Diameter (Decimal Inch): 1.8500; Maximum Drill Diameter (Decimal Inch): 1.8500; Maximum Drill Depth (Decimal Inch): 5.5500; Shank Type: Straight-Cylindrical; Shank Diameter (Inch): 1-1/2; Shank Diameter (Dec
Item #: 28495109
Brand: Kyocera
Model #: OTM86272
Product Specifications
| Drill Style | DR |
| Drill Diameter (Decimal Inch) | 1.8500 |
| Maximum Drill Diameter (Decimal Inch) | 1.8500 |
| Maximum Drill Depth (Decimal Inch) | 5.5500 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 4 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 5.5500 |
| Body Length (Decimal Inch) | 6.9700 |
| Shank Length (Decimal Inch) | 2.6900 |
| Overall Length/Projection (Decimal Inch) | 9.6600 |
| Insert Compatibility | WCMX |
| Coolant Through | Yes |
