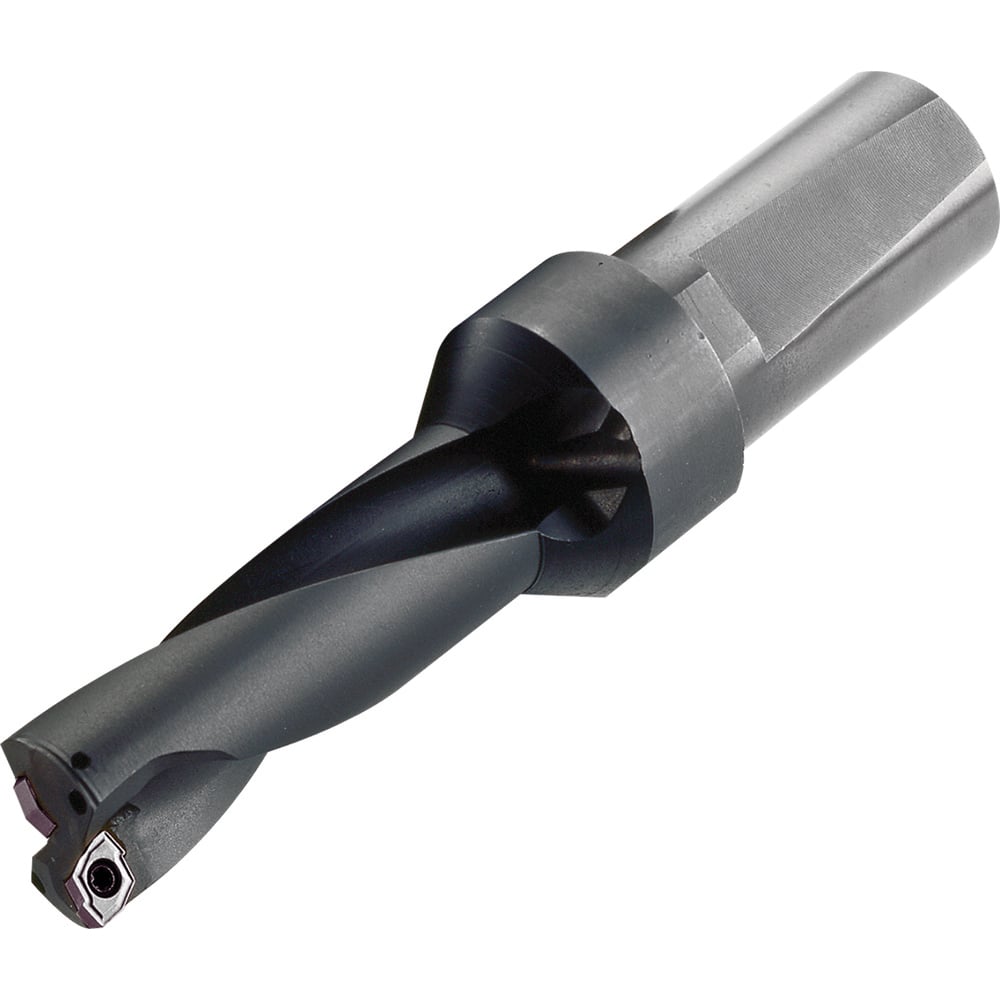

Indexable Insert Drills; Drill Style: DRZ; Drill Diameter (Decimal Inch): 1.6880; Maximum Drill Diameter (Decimal Inch): 1.6880; Maximum Drill Depth (Inch): 3-3/8; Maximum Drill Depth (Decimal Inch): 3.3750; Shank Type: Straight-Cylindrical; Shank Diamete
Item #: 28495091
Brand: Kyocera
Model #: THD89160
Product Specifications
| Drill Style | DRZ |
| Drill Diameter (Decimal Inch) | 1.6880 |
| Maximum Drill Diameter (Decimal Inch) | 1.6880 |
| Maximum Drill Depth (Inch) | 3-3/8 |
| Maximum Drill Depth (Decimal Inch) | 3.3750 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 2xD |
| Flute Length (Decimal Inch) | 3.3750 |
| Body Length (Decimal Inch) | 4.7800 |
| Shank Length (Decimal Inch) | 2.7100 |
| Overall Length/Projection (Decimal Inch) | 7.4900 |
| Insert Compatibility | ZCMT |
| Collar Diameter (Decimal Inch) | 2.1700 |
| Coolant Through | Yes |
